TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
189
Hard disk drive (HDD) / solid state drive (SSD)
7.2.13.6 Connecting cables to the backplane 1
Configuration without expander board

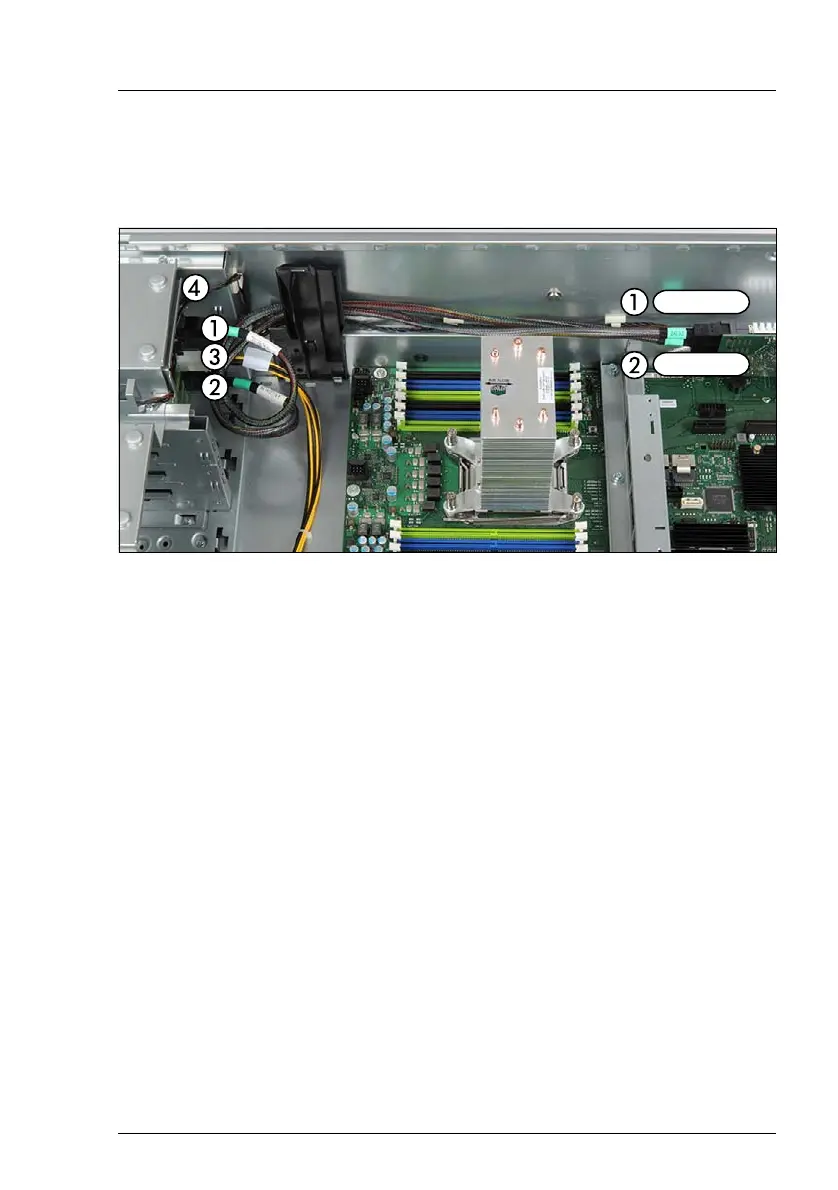

Figure 103: Connecting cables to backplane 1
Ê
Connect the two SAS cables to the backplane 1:
– (1) from SAS controller connector MLC1
– (2) from SAS controller connector MLC2
Ê
Connect power cables to the backplane 1:
– Power cable (3)
– If applicable, ODD power cable (4)
Ê
If applicable, connect the OOB cable (see cabling plan in figure 401 on
page 530 or figure 402 on page 530).
Configuration with expander board
Ê
For the cabling with expander board see section "Connecting cables to the
expander board" on page 275.
I
For a complete cabling overview, please refer to section "Cabling plans"
on page 512.
