310
Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Expansion cards and backup units
9.3.5.3 Removing the slot cover

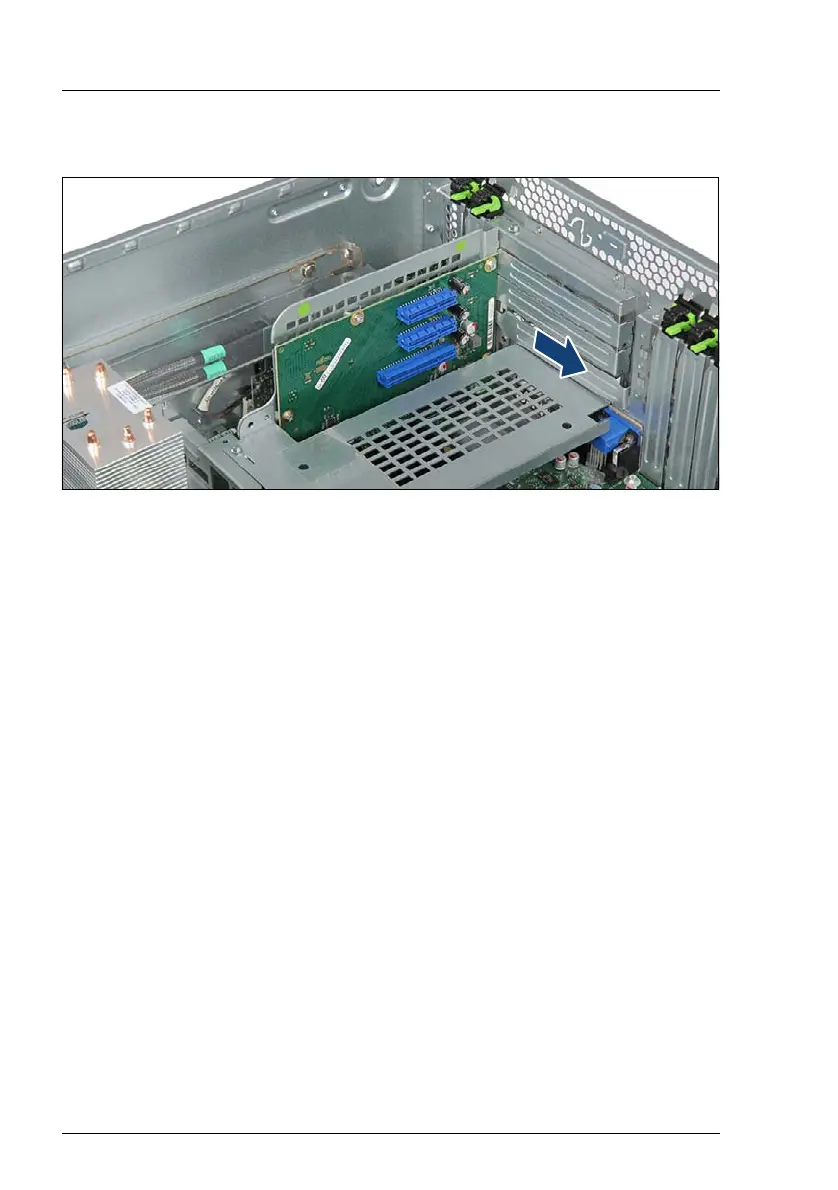

Figure 217: Removing the slot cover
Ê
Remove the slot cover.
V CAUTION!
Keep the slot cover for future use.
Always replace slot covers into unused PCI slot openings to comply
with applicable EMC regulations and satisfy cooling requirements.
9.3.5.4 Installing an expansion card in a riser module
Ê
Remove the expansion card from its protective packaging.
I
For further instructions regarding controller settings, please refer to
the accompanying documentation.
Ê
If applicable, attach the required slot bracket to the expansion card as
described in section "Handling slot brackets" on page 293.
