Front panel and external connectors

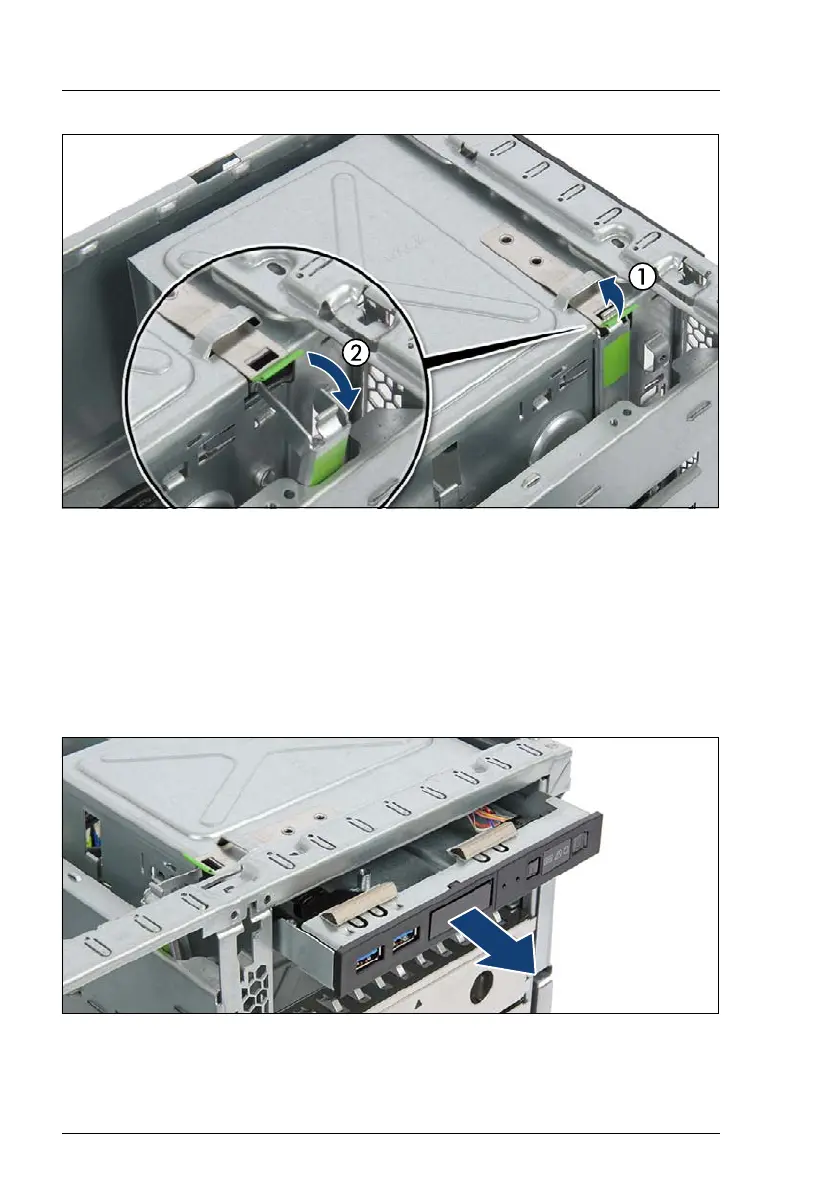

Figure 323: Opening the accessible drive locking bar
I
The front cover (tower server) / rack mounting frame (rack server) does
not need to be removed in order to replace the front panel module. In the
figures, the front cover / rack mounting frame has been removed for
illustration purposes only.
Ê
Pull up the locking latch to disengage the accessible drive locking bar (1).
Ê
Fold out the accessible drive locking bar (2).
Figure 324: Removing the front panel module
Ê
Pull out the front panel module.
