TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
413
Ê
From inside the Multibay box, press out on the slimline ODD module and pull
it out of its bay (2).

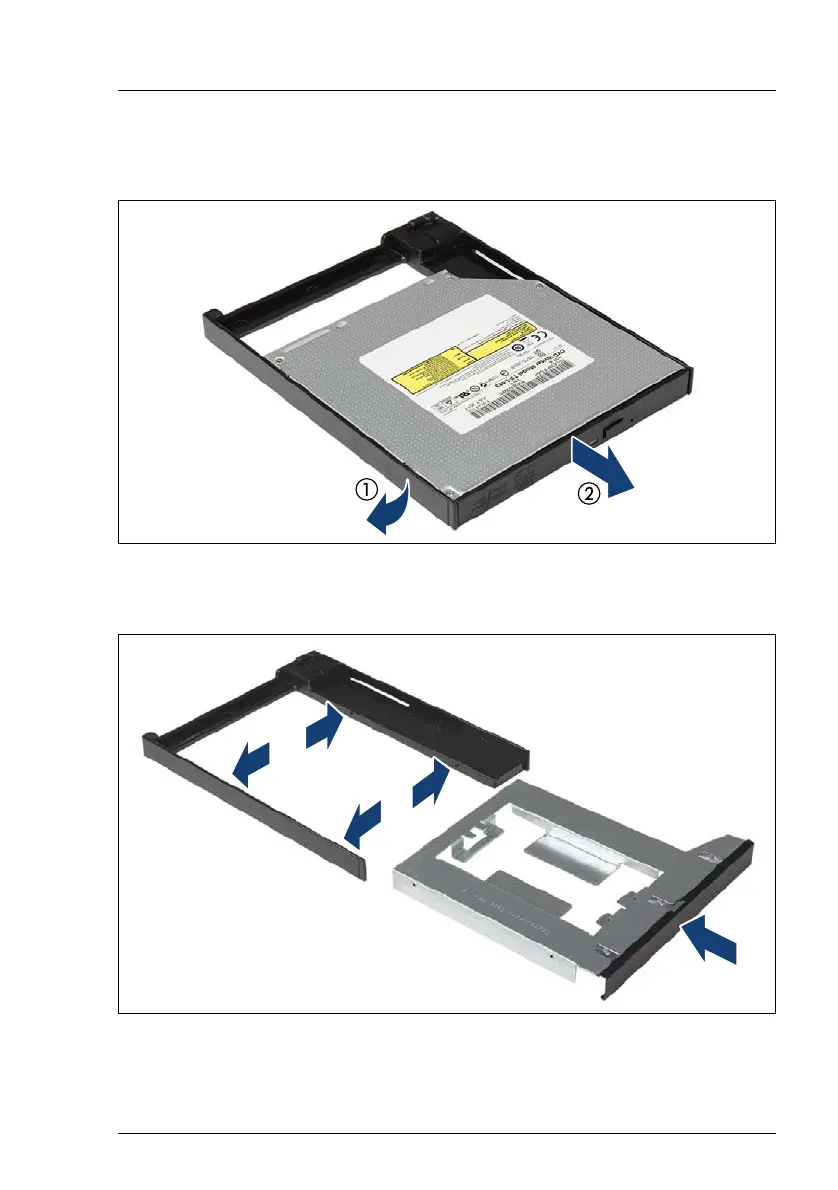

Figure 306: Removing the slimline ODD from its installation frame
Ê
Disengage (1) and remove (2) the slimline ODD from its installation frame.
Figure 307: Mounting the slimline ODD dummy insert in the installation frame
Ê
Fit the slimline ODD dummy insert into the slimline ODD installation frame.
