TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
535
Ê
Remove the intrusion switch cable from the cable guide (G) and the two
cable clamps (C) on the HDD cage.

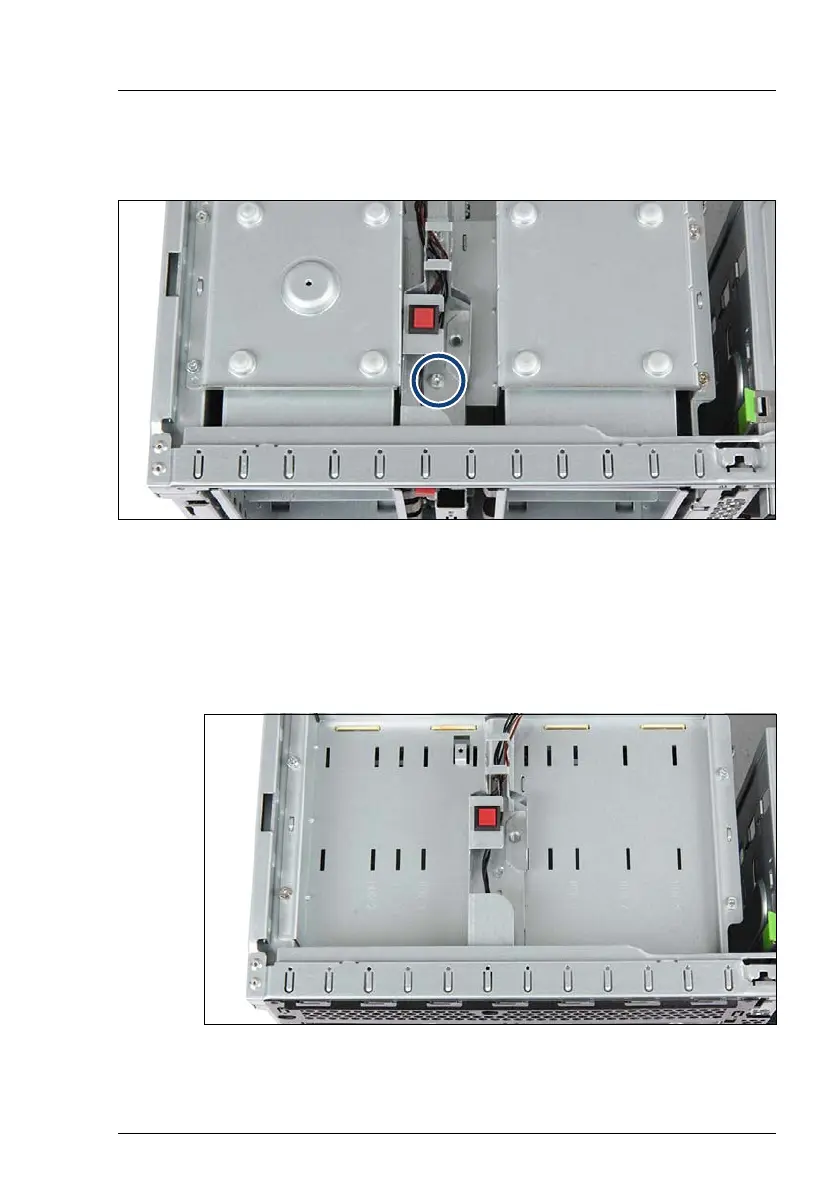

Figure 408: Removing the intrusion switch holder (A)
Ê
Remove one screw from the intrusion switch holder as shown.
I
Replacing the intrusion switch cable is illustrated by the example of
the 2.5-inch HDD model. In case of the 3.5-inch HDD model, the
procedure is identical, although the HDD bay top cover looks slightly
different:
Figure 409: HDD bay top cover in 3.5-inch HDD configurations
