TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
245
Hard disk drive (HDD) / solid state drive (SSD)

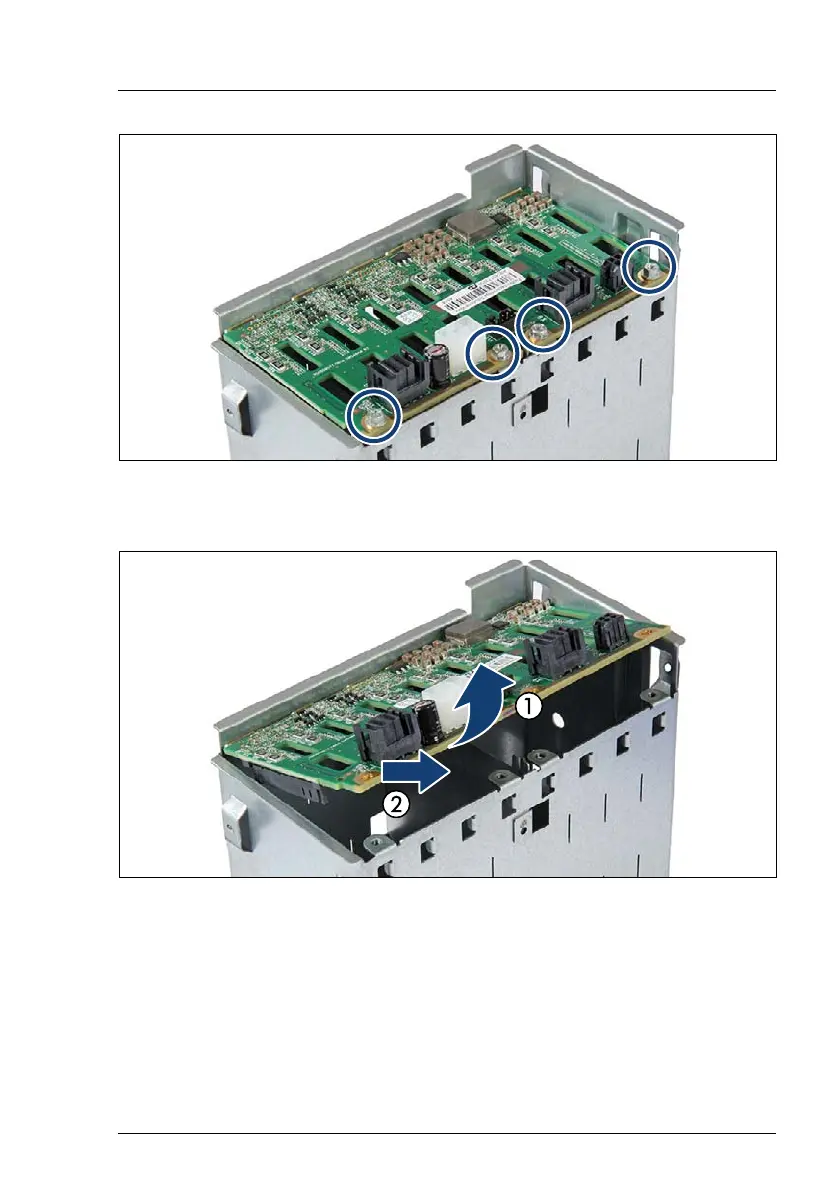

Figure 157: Removing the HDD/SSD backplane (A)
Ê
Remove the four screws (see circles).
Figure 158: Removing the HDD/SSD backplane (B)
Ê
Fold up the HDD/SSD backplane (1) and at a slight angle, remove it from the
recesses in the HDD extension box (2).
