TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
505
Converting a tower model to a rack model
Assembling the rack front cover

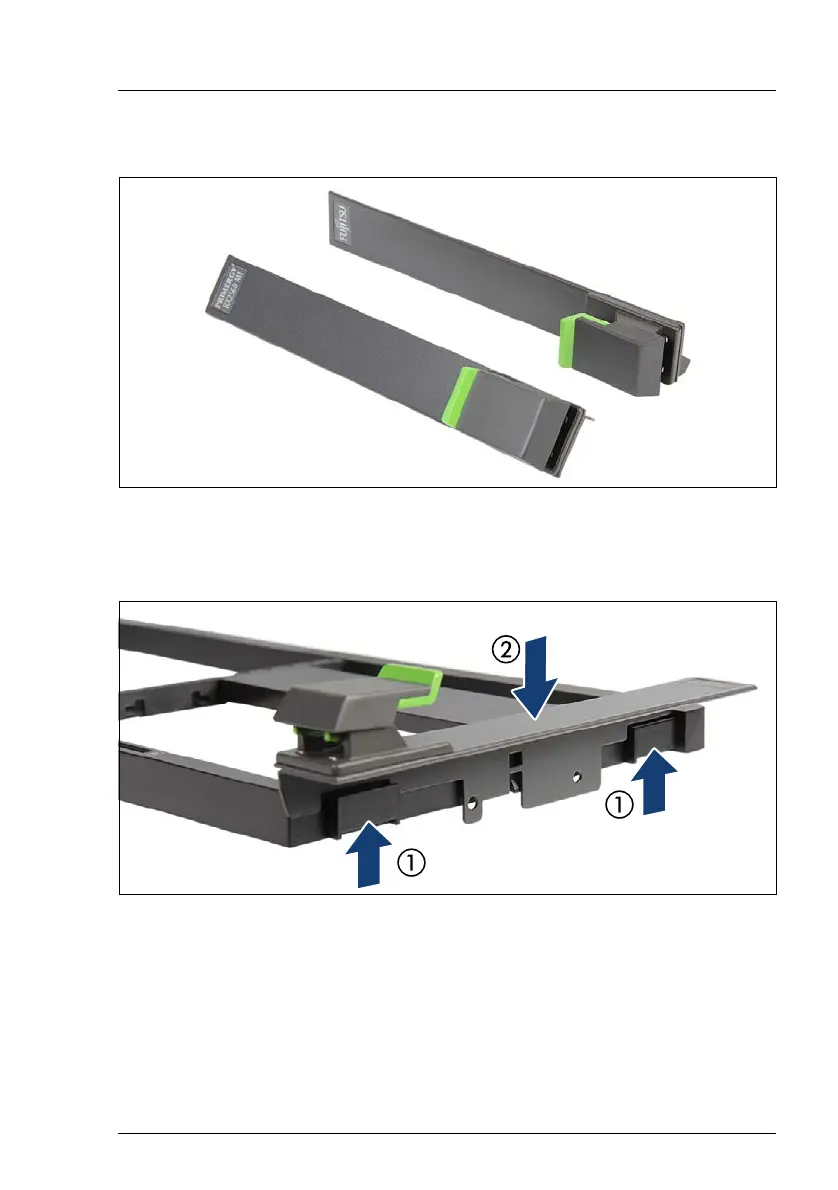

Figure 375: Rack mounting brackets with quick release levers
I
The rack front cover consists of a plastic frame and two rack mounting
brackets with quick release levers.
Figure 376: Installing rack mounting brackets
Ê
Fit the rack mounting bracket with the FUJITSU logo on the two hooks on
the right side of the rack front bezel (1).
Ê
Firmly press down on the rack mounting bracket until it is fully seated in the
rack front bezel (2).
Ê
Mount the second rack mounting bracket to the left side of the rack front
bezel accordingly.
