Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Converting a tower model to a rack model

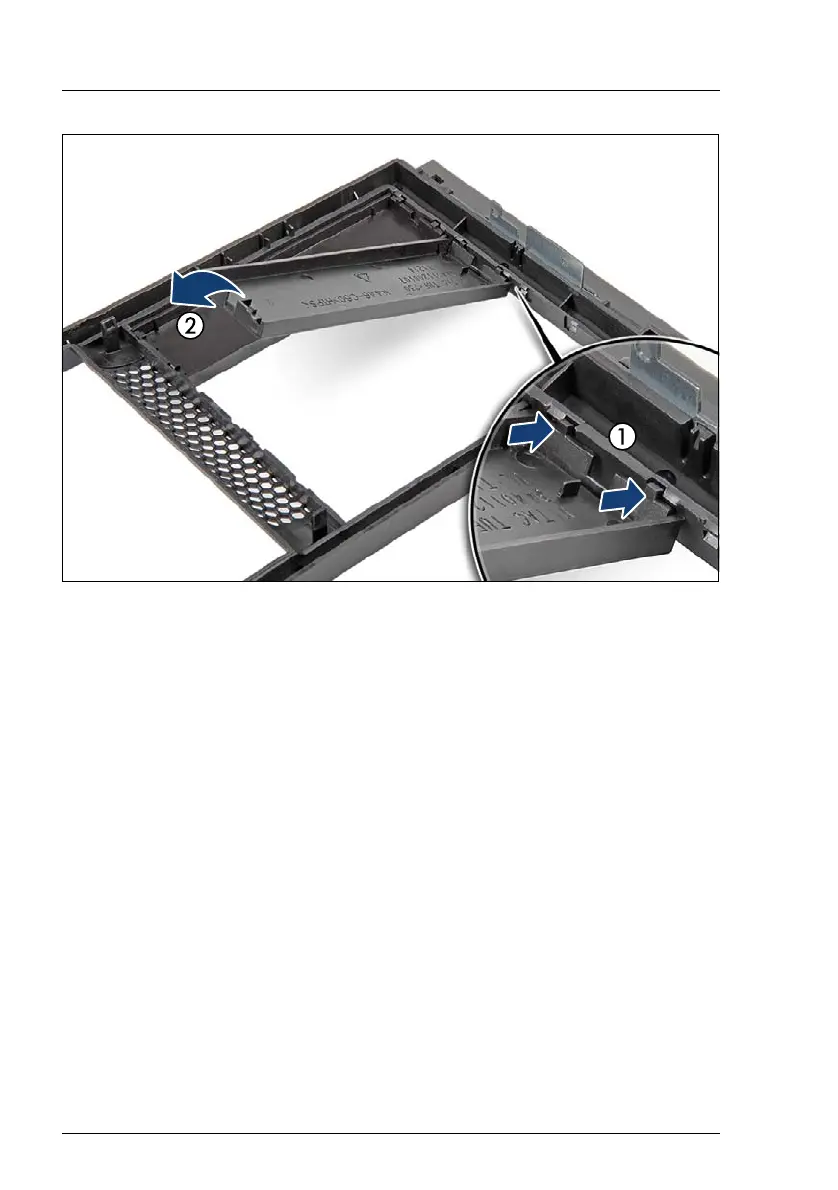

Figure 377: Installing accessible drive dummy covers
Ê
If available, reinstall all accessible drive dummy covers into their original
locations (rotated by 90 degrees):
Ê
Ensure that an accessible drive filler cover has been installed in every
empty drive bay.
Ê
Turn the front cover face down.
Ê
Join the two lugs on one edge of the accessible drive cover with the right
inner edge of the front cover (1).
Ê
Fold down the accessible drive cover until it snaps in place (2).
I
Use the dummy covers that have been removed from the front cover
during the preliminary steps.
Ê
Install the rack front cover as described in section "Installing the rack
mounting frame" on page 74.
