TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
225
Hard disk drive (HDD) / solid state drive (SSD)

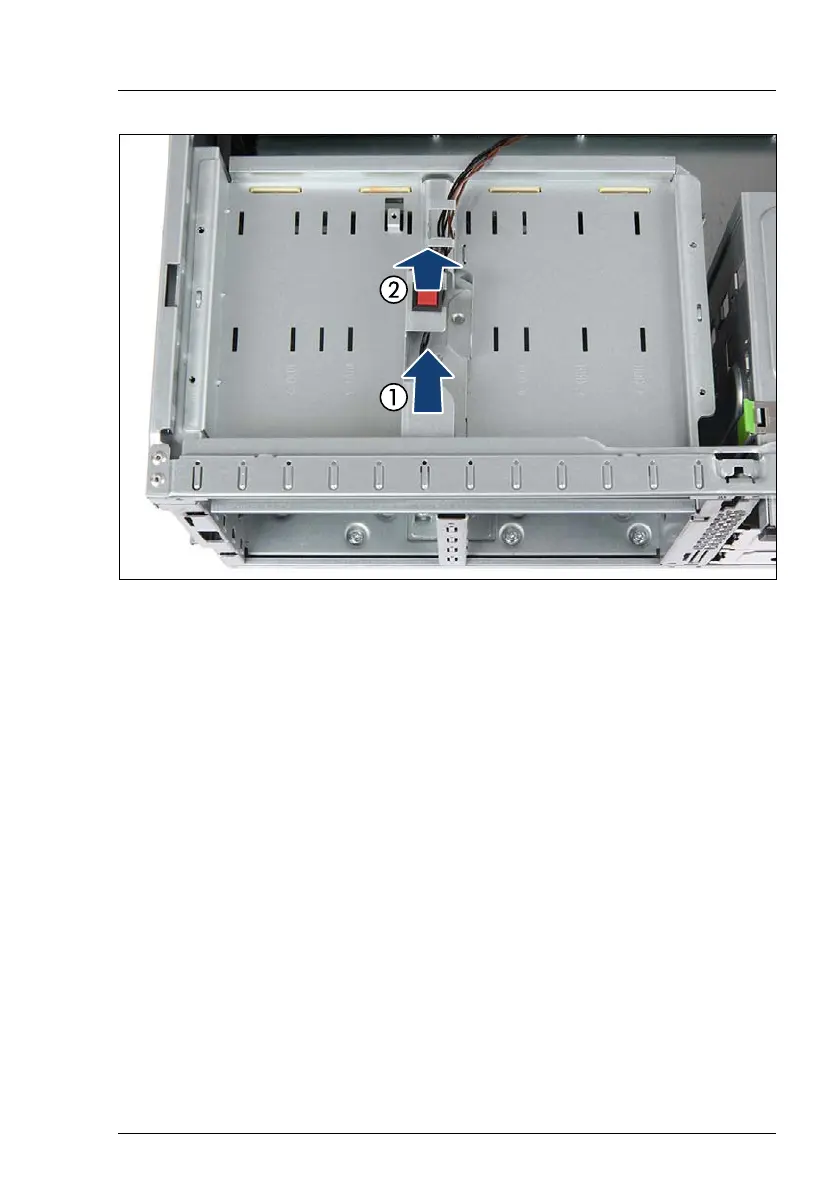

Figure 137: Removing the 3.5-inch HDD bay top cover (B)
Ê
Slide back the intrusion switch holder until it disengages from the HDD bay
top cover (1).
Ê
Remove the intrusion switch holder (2) and set aside.
Ê
Leave the intrusion switch cable connected to the system board.
