Fujitsu PRIMERGY TX2560 M2 Upgrade And Maintenance Manual

240 Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Hard disk drive (HDD) / solid state drive (SSD)

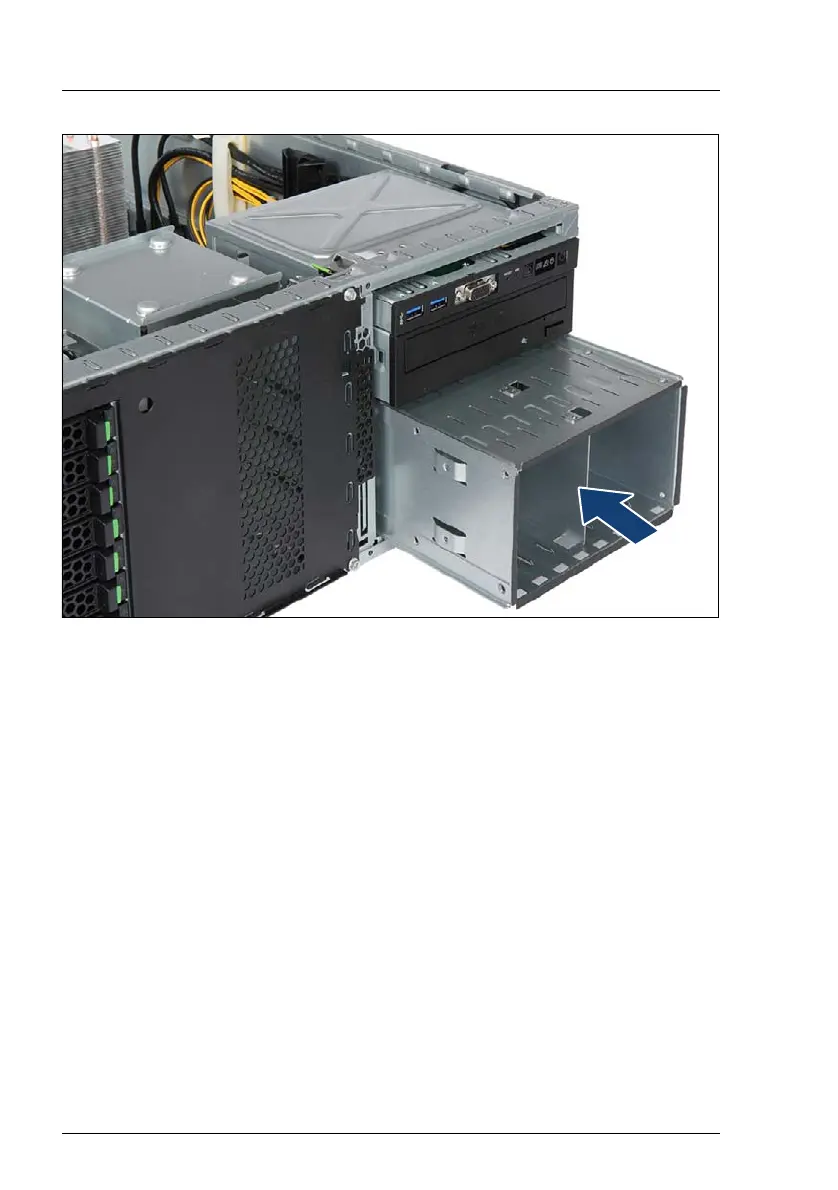

Figure 154: Inserting the 8x 2.5-inch HDD extension box
Ê Insert the 8x 2.5-inch HDD extension box into installation bays 2 and 3 and
carefully push in until it lines up with the front panel.
Ê Engage the locking bar as described in section "Closing the accessible drive
locking bar" on page 102.
