276
Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Hard disk drive (HDD) / solid state drive (SSD)

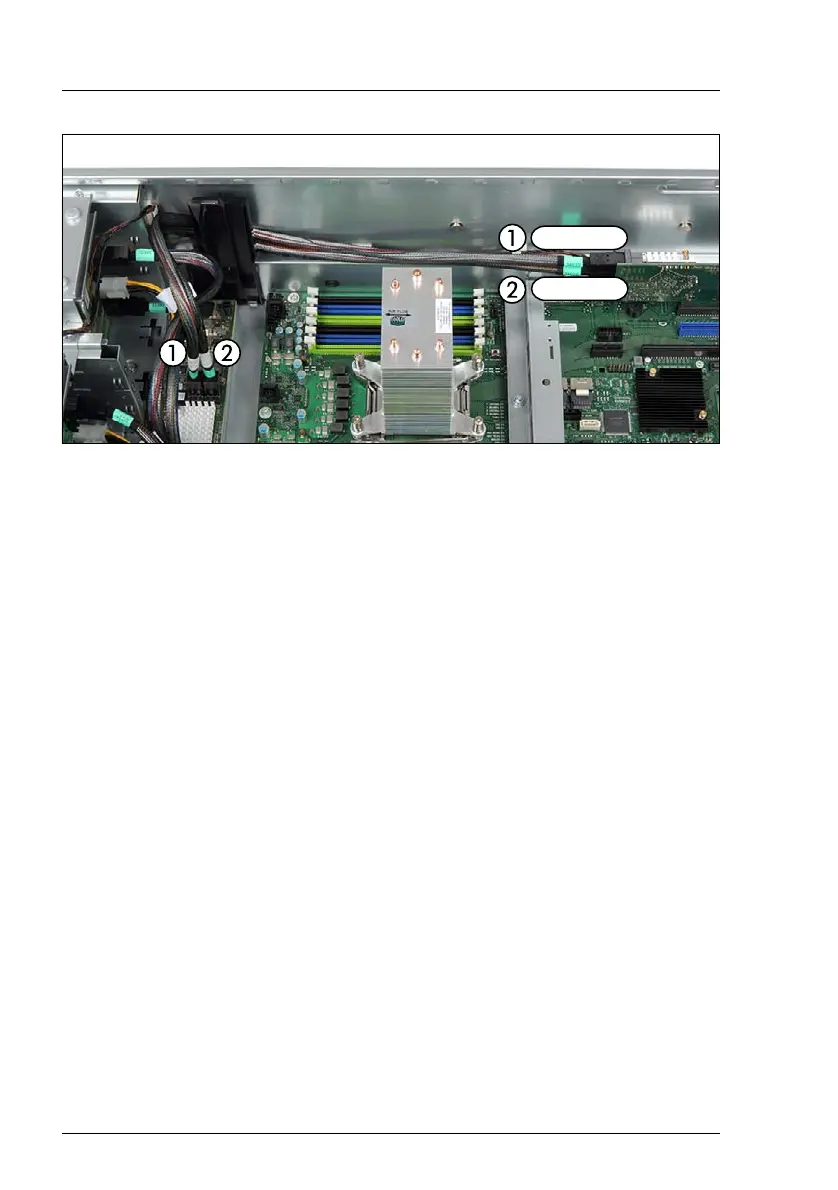

Figure 191: Connecting cables from expander board to controller
Ê
Connect the two SAS cables to the SAS expander board:
– (1) from SAS controller connector MLC1 to SAS expander board X1
– (2) from SAS controller connector MLC2 to SAS expander board X2
I
For a complete cabling overview, please refer to section "Cabling plans"
on page 512.
