TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
277
Hard disk drive (HDD) / solid state drive (SSD)
3.5-inch HDD/SSD configurations

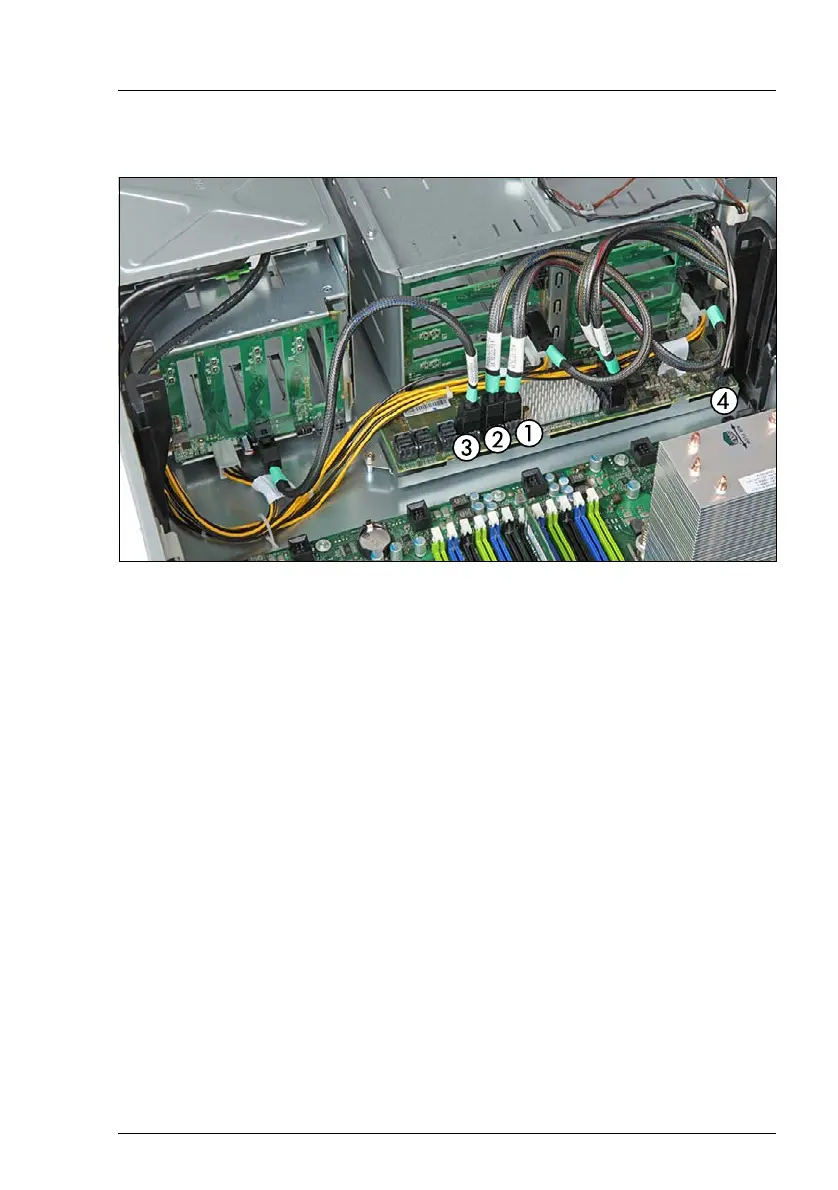

Figure 192: Connecting cables to expander board
Ê
Connect SAS cables to the expander board:
– (1) from backplane 1 connector X9 to expander board connector X10
– (2) from backplane 2 connector X9 to expander board connector X11
– (3) if applicable, from backplane 3 connector X9 to expander board
connector X14
Ê
(4) If applicable, connect the power cable from backplane 1 connector X17
to expander board connector X3.
