Hard disk drive (HDD) / solid state drive (SSD)
HDD/SSD naming scheme

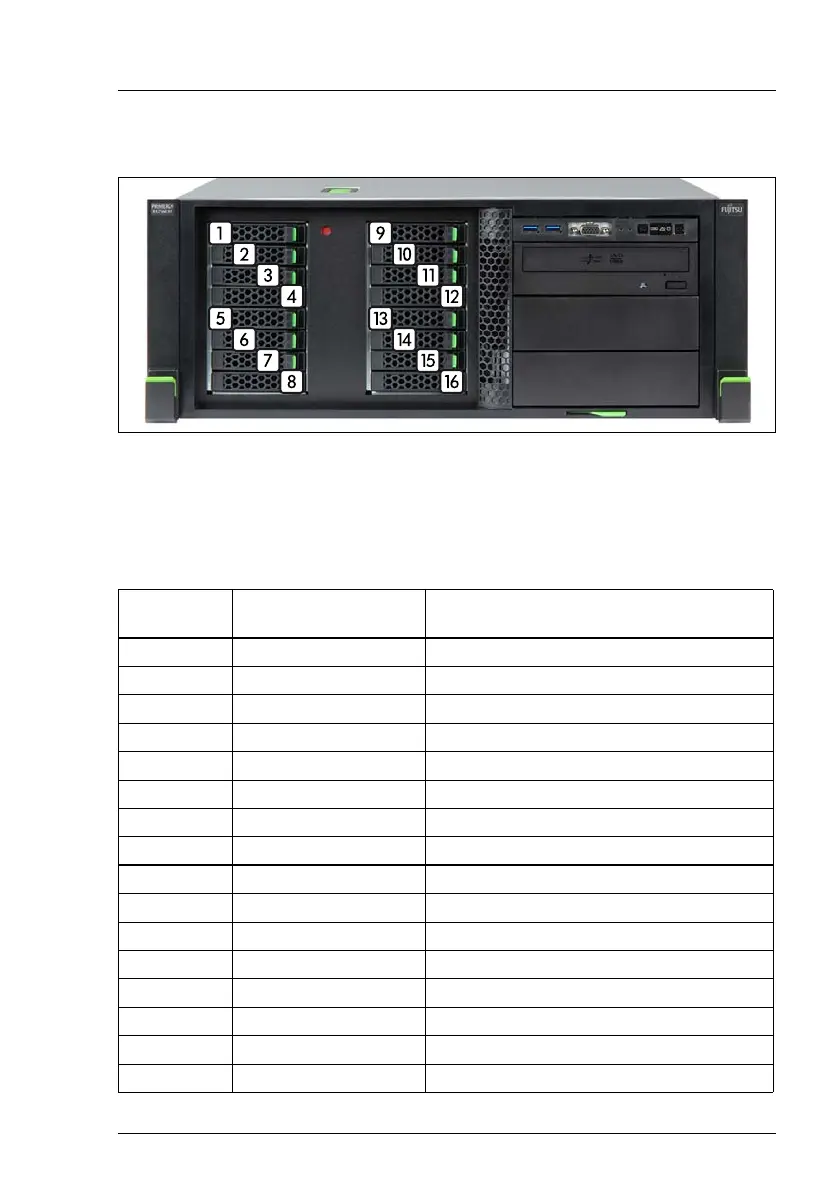

Figure 76: Naming scheme for up to 16x 2.5-inch HDDs/SSDs
I The HDD/SSD numbering as listed in the ServerView RAID Manager
differs from the HDD mounting order:
With SAS expander board and one SAS controller
Position Logical drive number
ServerView RAID Manager display name
(Enclosure number: Port number)
[1] 0 Vendor Product (0)
[2] 1 Vendor Product (1)
[3] 2 Vendor Product (2)
[4] 3 Vendor Product (3)
[5] 4 Vendor Product (4)
[6] 5 Vendor Product (5)
[7] 6 Vendor Product (6)
[8] 7 Vendor Product (7)
[9] 8 Vendor Product (8)
[10] 9 Vendor Product (9)
[11] 10 Vendor Product (10)
[12] 11 Vendor Product (11)
[13] 12 Vendor Product (12)
[14] 13 Vendor Product (13)
[15] 14 Vendor Product (14)
[16] 15 Vendor Product (15)
