Hard disk drive (HDD) / solid state drive (SSD)
HDD/SSD naming scheme

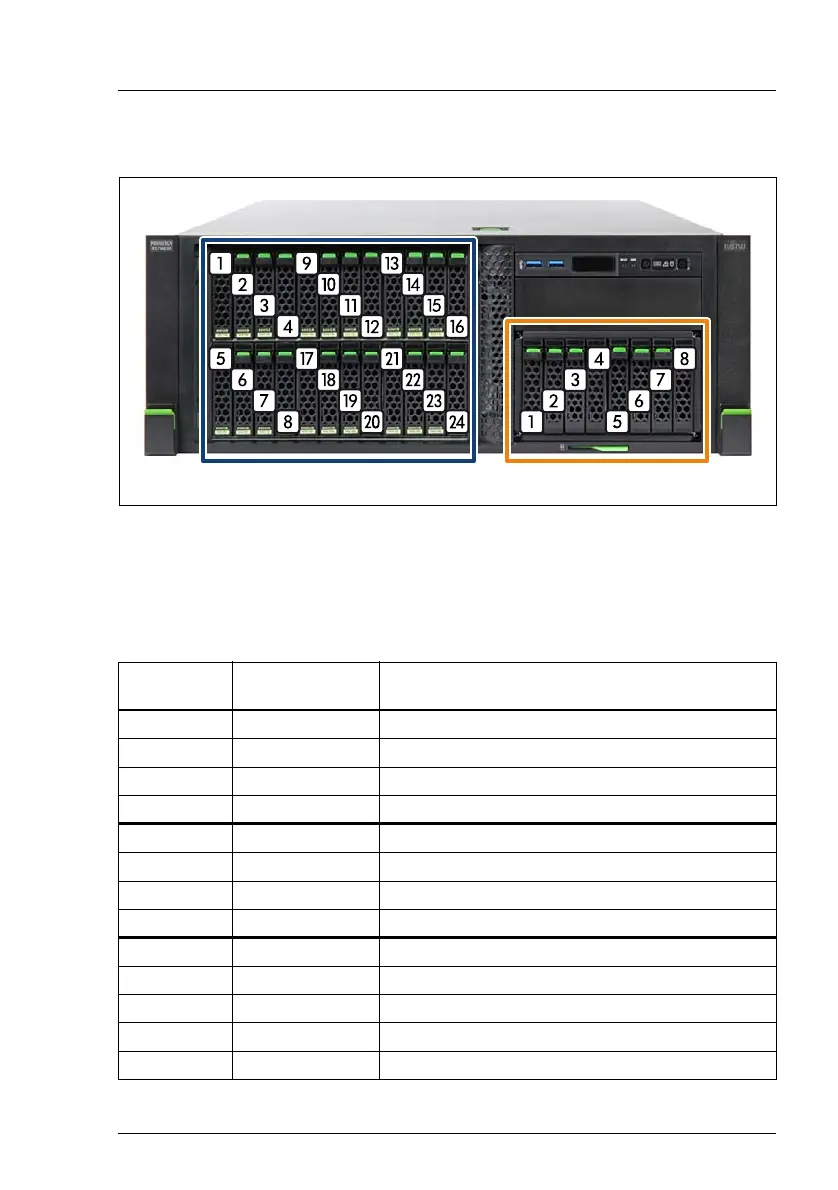

Figure 82: Naming scheme for up to 24 HDD/SSD modules and up to 8 PCIe SSDs SFF
I The HDD/SSD numbering as listed in the ServerView RAID Manager
differs from the HDD mounting order:
With SAS expander board and one SAS controller
Position
Logical drive
number
ServerView RAID Manager display name
(Enclosure number: Port number)
[1] 0 Vendor Product (1:0)
[2] 1 Vendor Product (1:1)
[3] 2 Vendor Product (1:2)
[4] 3 Vendor Product (1:3)
[5] 4 Vendor Product (1:4)
[6] 5 Vendor Product (1:5)
[7] 6 Vendor Product (1:6)
[8] 7 Vendor Product (1:7)
[9] 8 Vendor Product (1:8)
[10] 9 Vendor Product (1:9)
[11] 10 Vendor Product (1:10)
[12] 11 Vendor Product (1:11)
[13] 12 Vendor Product (1:12)
HDD/SSD PCIe SSD SFF
