TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
199
Hard disk drive (HDD) / solid state drive (SSD)
– SAS cables:

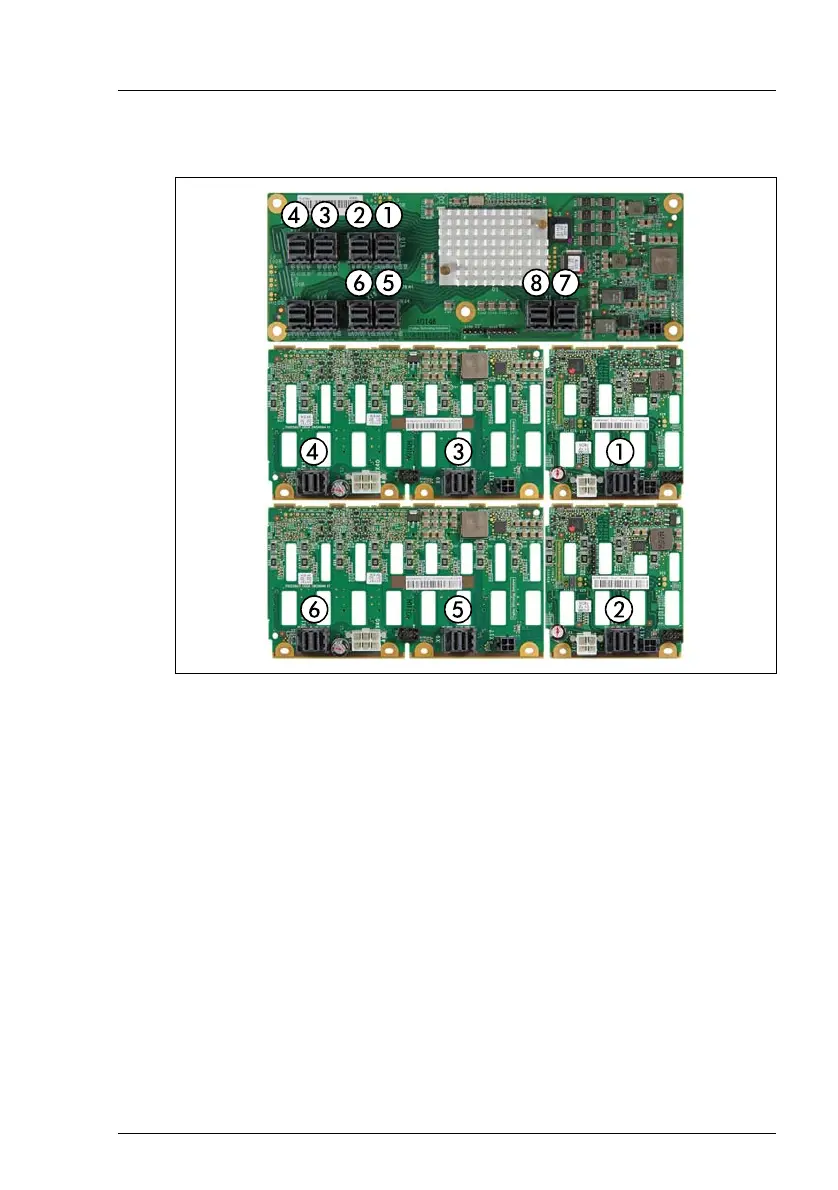

Figure 114: Connecting SAS cables - expander board and backplanes
(1) connector X9 on SAS backplane 1 to connector X10
(2) connector X9 on SAS backplane 2 to connector X11
(3) connector X9 on SAS backplane 3 to connector X12
(4) connector X10 on SAS backplane 3 to connector X13
(5) connector X9 on SAS backplane 4 to connector X14
(6) connector X10 on SAS backplane 4 to connector X15
(7) connector MLC 2 on SAS controller to connector X2
(8) connector MLC 1 on SAS controller to connector X1
– power cable, connector X17 on SAS backplane 1 to connector X3
I
Further information see cabling plan "SAS cabling: 32x 2.5" HDDs
and SAS 3.0 expander board A3C40176099" on page 522.
Ê
Pull down the SAS expander holder carefully.
Ê
Fasten the SAS expander holder with the screw (see figure 104).
