Fujitsu PRIMERGY TX2560 M2

424 Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Accessible drives

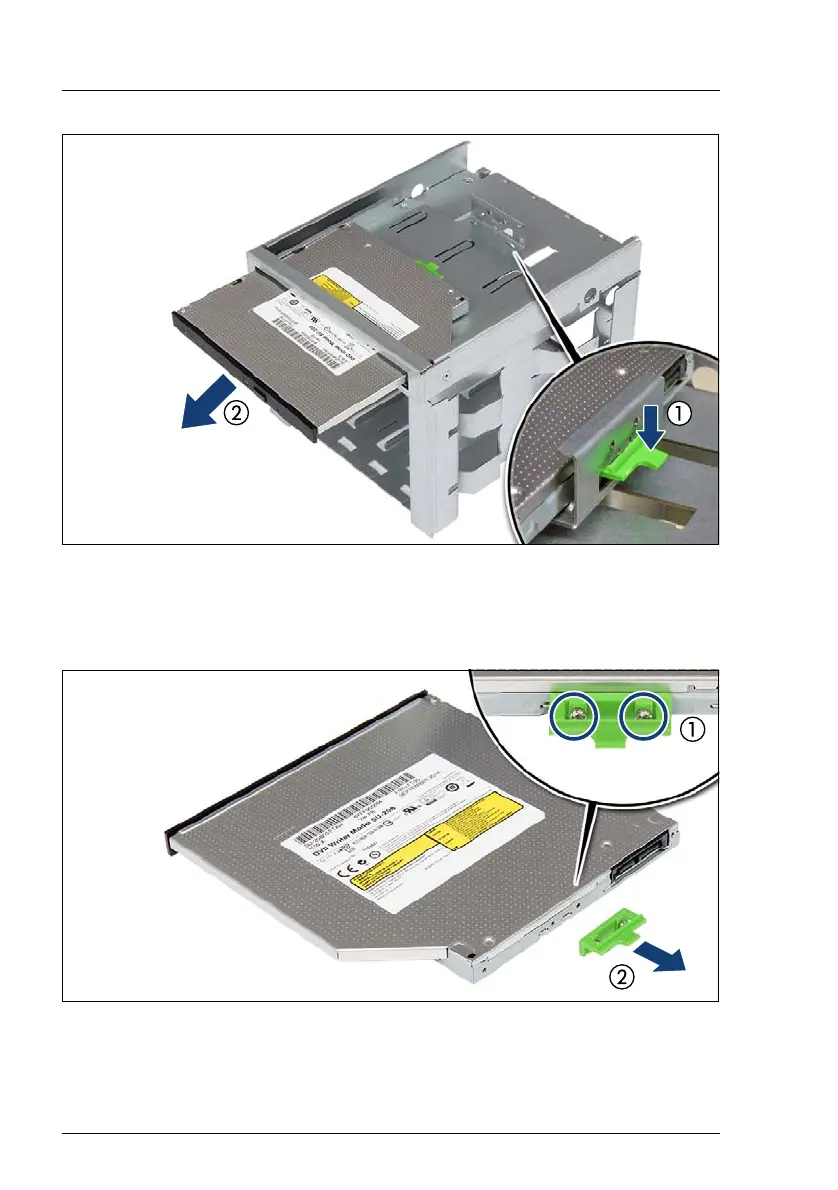

Figure 316: Removing the ultraslim ODD from the extension box
Ê Pull down the locking latch (1).
Ê Remove the ultraslim ODD (2).
Figure 317: Removing the locking latch from the ultraslim ODD
Ê Remove the two screws (1).
Ê Remove the locking latch (2).
