TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
503
Converting a tower model to a rack model

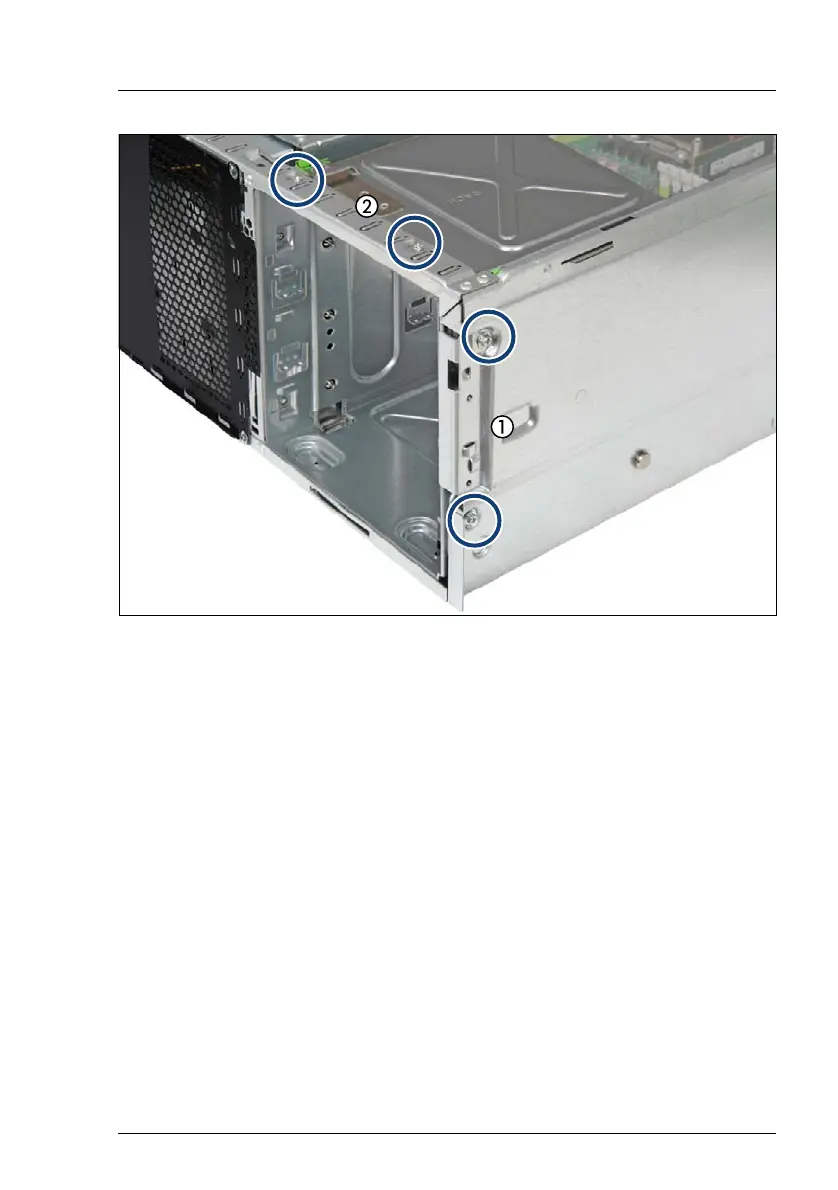

Figure 373: Securing the accessible drive cage (A)
Ê
Secure the accessible drive cage with two screws to the right chassis edge
(1).
Ê
Secure the accessible drive cage with two screws to the top edge of the
chassis (2).
Ê
Ensure that all cables and components are properly secured inside the
server and that there are no loose pieces.
