Fujitsu PRIMERGY TX2560 M2

514 Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Cabling

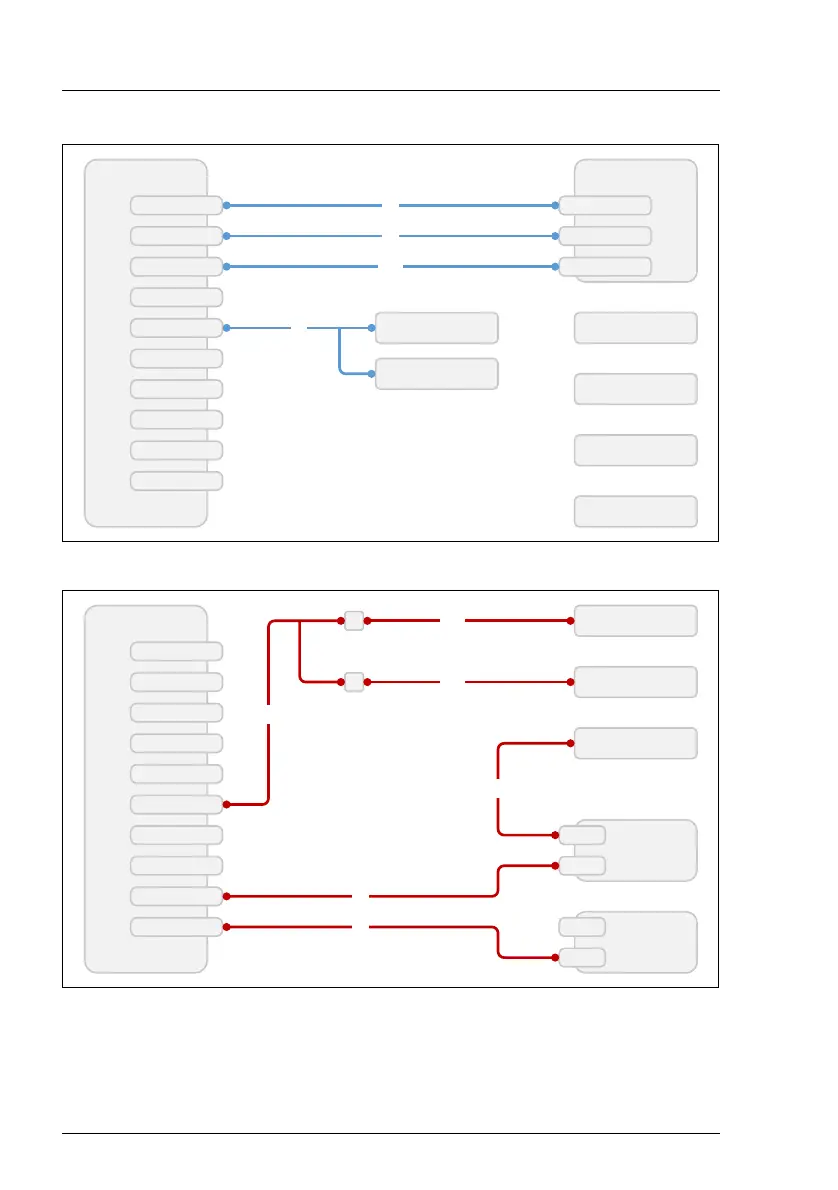

Figure 378: Basic cabling: front panel and intrusion switch
Figure 379: Power cabling: 4x/8x 3.5" HDDs and accessible drives
System Board
FRONTPANEL
USB 3.0 Front
Front VGA
SATA 5
INTRUSION
ODD PWR
PWR 12V 4
PWR 12V 3
PWR 12V 2
PWR 12V 1
Front Panel
Front Panel
USB 3.0
VGA Module
Backup Drive 2
Backup Drive 1
Optical Disk Drive
C1
C2
C30
Intrusion Switch Front
Intrusion Switch Side
C4
HDD Backplane
Accessible Drive
System Board
FRONTPANEL
USB 3.0 Front
Front VGA
SATA 5
INTRUSION
ODD PWR
PWR 12V 4
PWR 12V 3
PWR 12V 2
PWR 12V 1
3.5" HDD
Bac kplane 2
X17
X40
3.5" HDD
Bac kplane 1
X17
X40
Backup Drive
Optical Disk Drive
C8
C25
C24
C24 / C25
C6
C6
