Fujitsu PRIMERGY TX2560 M2 Upgrade And Maintenance Manual

TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual 527
Cabling

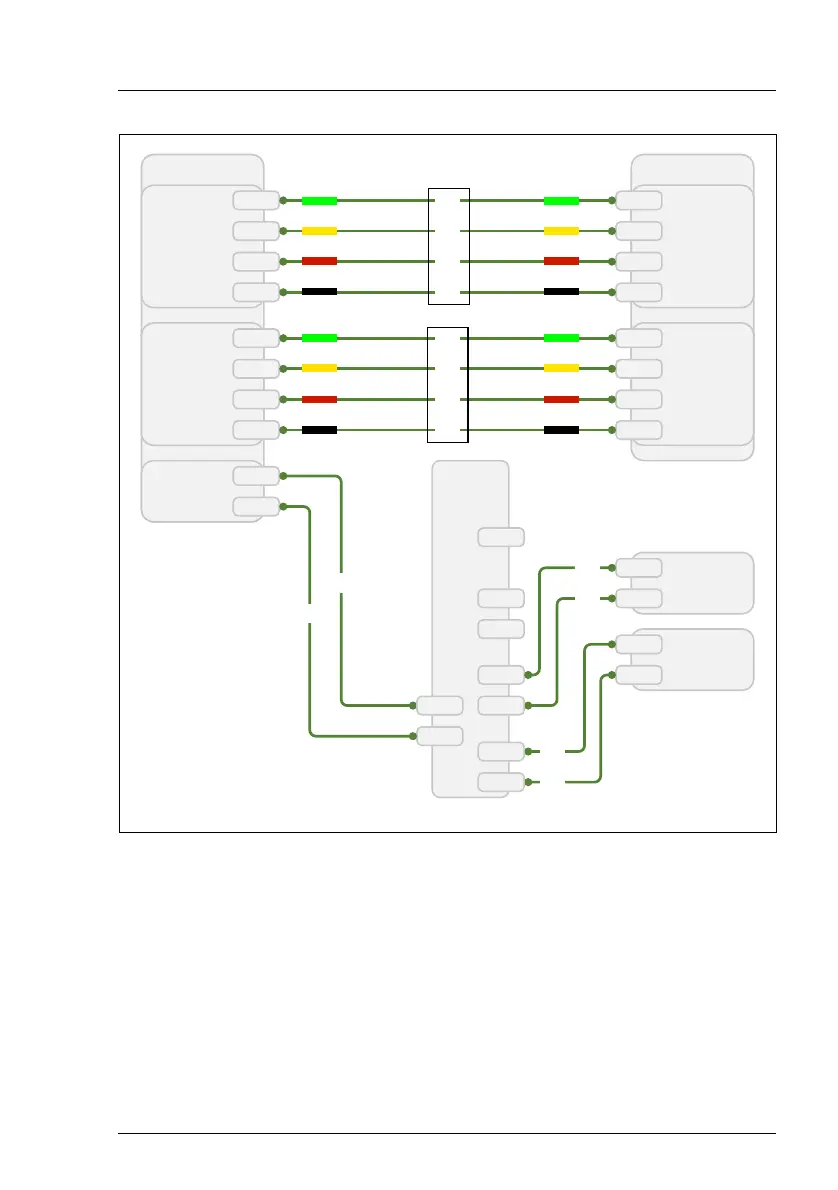

Figure 397: PCIe cabling: 16x 2.5" HDDs, 4x/8x 2.5" PCIe SSD and SAS 3.0 expander board
A3C40181407
System Board
MLC2
MLC1
HDD Extension Box
P3_X4
P2_X3
P1_X2
P0_X1
P3_X4
P2_X3
P1_X2
P0_X1
C27
C27
C27
C27
C27
C27
C27
C27
C10
8x 2.5" HDD
Backplane 2
X10
X9
8x 2.5" HDD
Backplane 1
X10
X9
C11
C11
C11
SAS 3.0
Expander
X13
X12
X11
X10
X2
X1
C10
C11
X14
X15
X3
SAS 3.0
Slot 1(boot)
PCIe Switch
Slot 9
PCIe Switch
Slot 8
4x 2.5"
PCIe SSD
Backplane 2
4x 2.5"
PCIe SSD
Backplane 1
P3_X4
P3_X4
P2_X3
P1_X2
P0_X1
P2_X3
P1_X2
P0_X1
