Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Basic hardware procedures
Ê
Remove all remaining external cables from the rear connector panel and
expansion cards.

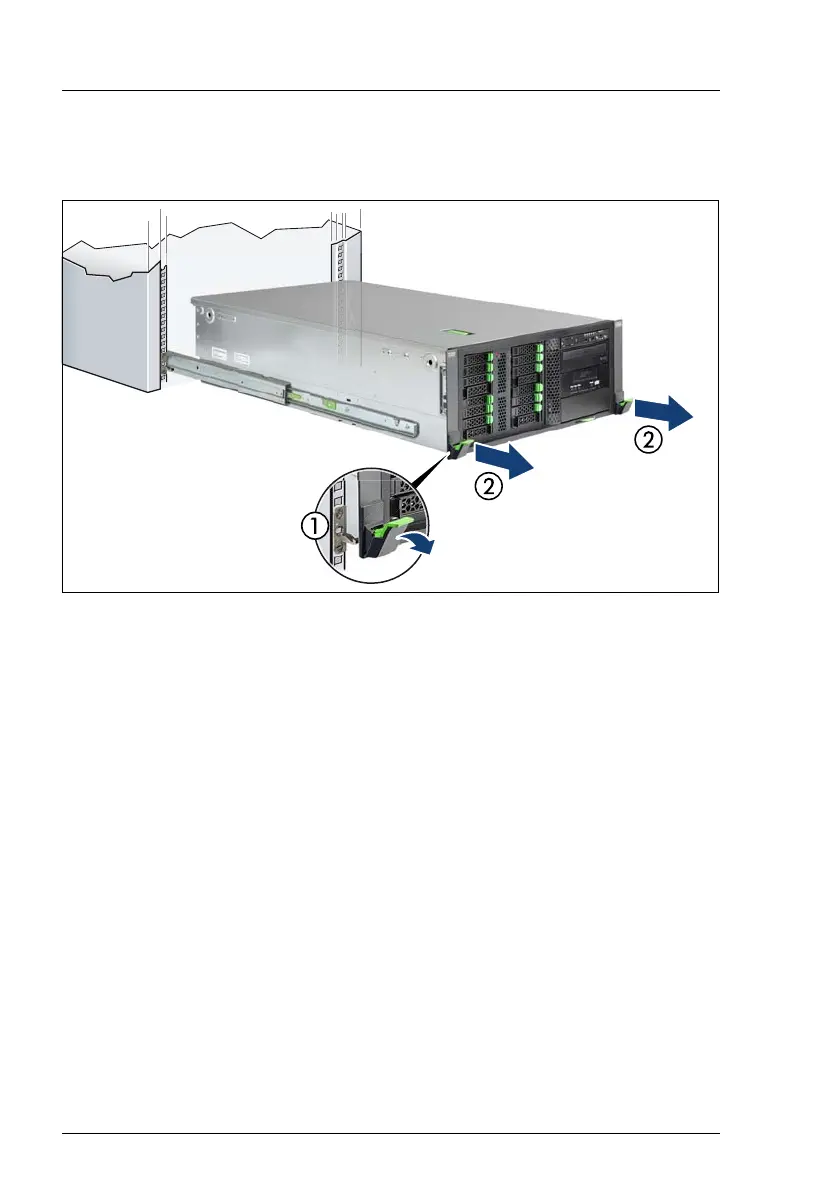

Figure 5: Extending the server out of the rack
Ê
If you are not using a cable mounting arm (CMA kit), ensure that the rear
cables are long enough not to be strained or damaged when extending the
server out of the rack.
Ê
Fold down the two quick release levers (1).
Ê
Pull the server out of the rack until it locks in place (2).
V CAUTION!
Do not use the extended server as a surface on which to put things
or as a work surface, and strictly avoid leaning on or against it.
