Basic hardware procedures

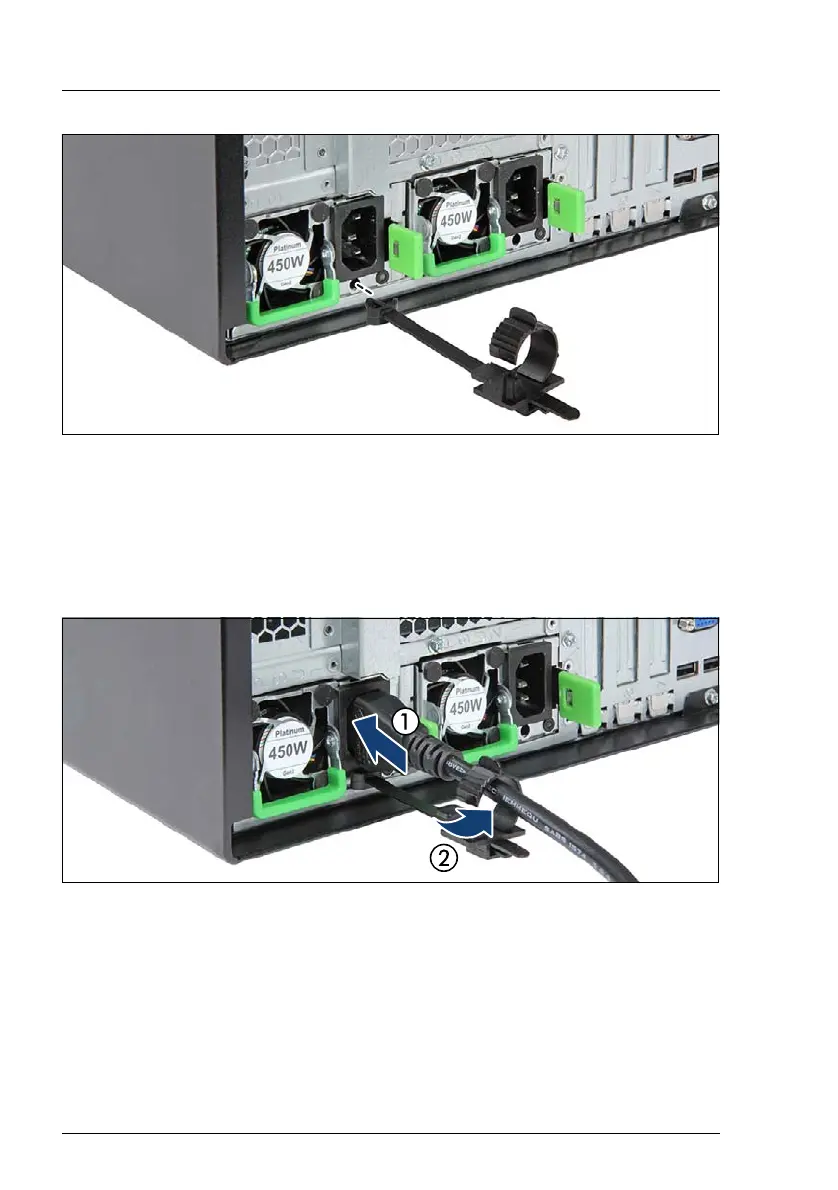

Figure 38: Mounting the PSU cable bracket
Ê
Locate the mounting hole on the PSU.
Ê
Clip the PSU cable bracket into the mounting hole on the PSU.
I
Once attached, a PSU cable bracket cannot be removed from the
PSU anymore.
Figure 39: Securing power cords (A)
Ê
Connect the power cords to the PSUs (1).
Ê
Run the power cord through the PSU cable bracket as shown (2).
Ê
Ensure that the PSU indicator on the PSU lights up green.
I
For further information on the PSU operation status, refer to section
"Indicators on PSUs (slide-in units)" on page 564.
