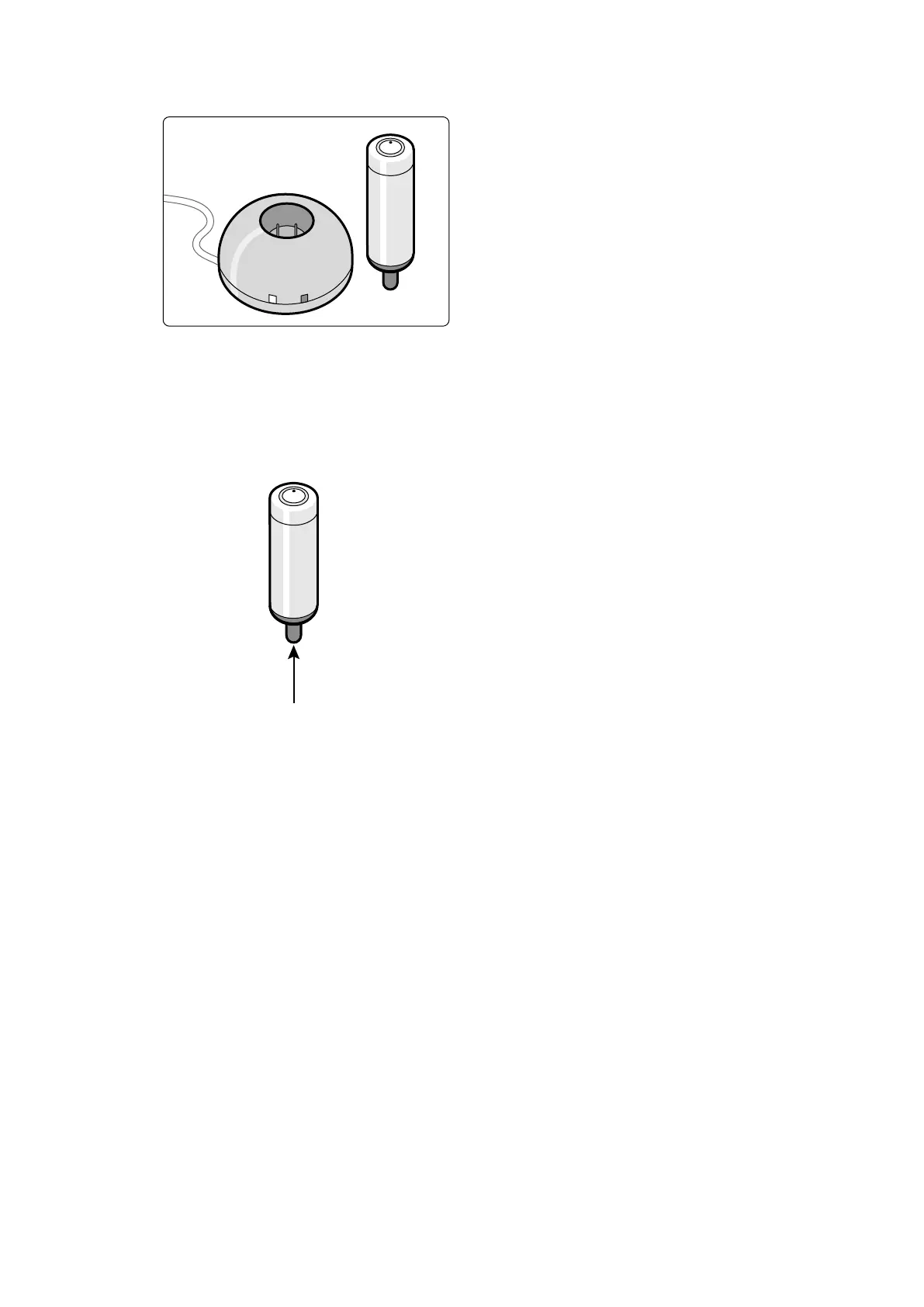

Figure 100 Laser t

ool and charger

The laser tool is used in the laser tool holder, which is aached to the table using a tabletop accessory

clamp.

The laser aperture of the laser tool is indicated with an arrow in the following illustraon.

Figure 101 Laser t

ool laser aperture

Using Other Equipment Accessories

Azurion Release 1.2 Ins

trucons for Use 197 Philips Healthcare 4522 203 52421
