Philips Azurion - 11.1.5 Using the Height-Adjustable Arm Support

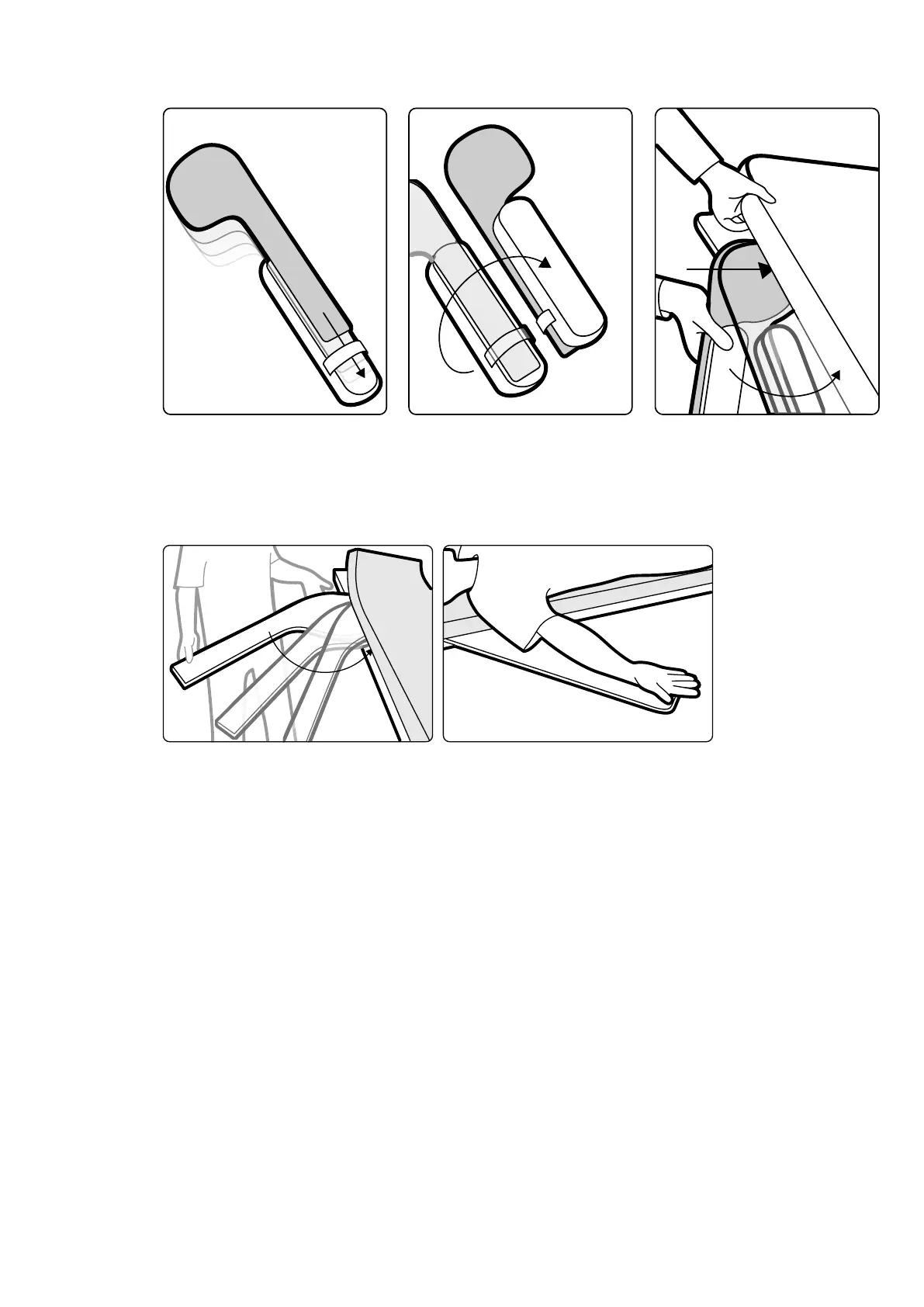

Figure 83 Aaching the f
oam pad to the arm support board
3 With the foam pad facing upward, slide the arm support board under the paent's shoulder
between the tabletop and the maress.
4 Posion the paent's arm on the arm support board.
Figure 84 P
osioning the paent's arm
11.1.5 Using the Height-Adjustable Arm Support
NOTE The height-adjustable arm support cannot be used for X-ray procedures on the arm. In such
cases, use the arm support board. For more informaon, see Using the Arm Support
Board (page 188).
1 Posion the paent on the table.
For more informaon, see Posioning the Paent on the Table (page 52).
2 Fit the tabletop accessory clamp to the tabletop at the desired posion, and ghten the locking
lever.
Using Other Equipment Accessories
