Philips Azurion - 16.21.4 Isokerma Maps for B20 System

The following technique factors are used:
•
Fluoroscopy 120 kV
• Source-to-image distance 100 cm
• Field size 10 x 10 cm
• No addional lter
Frontal X-ray Direcon

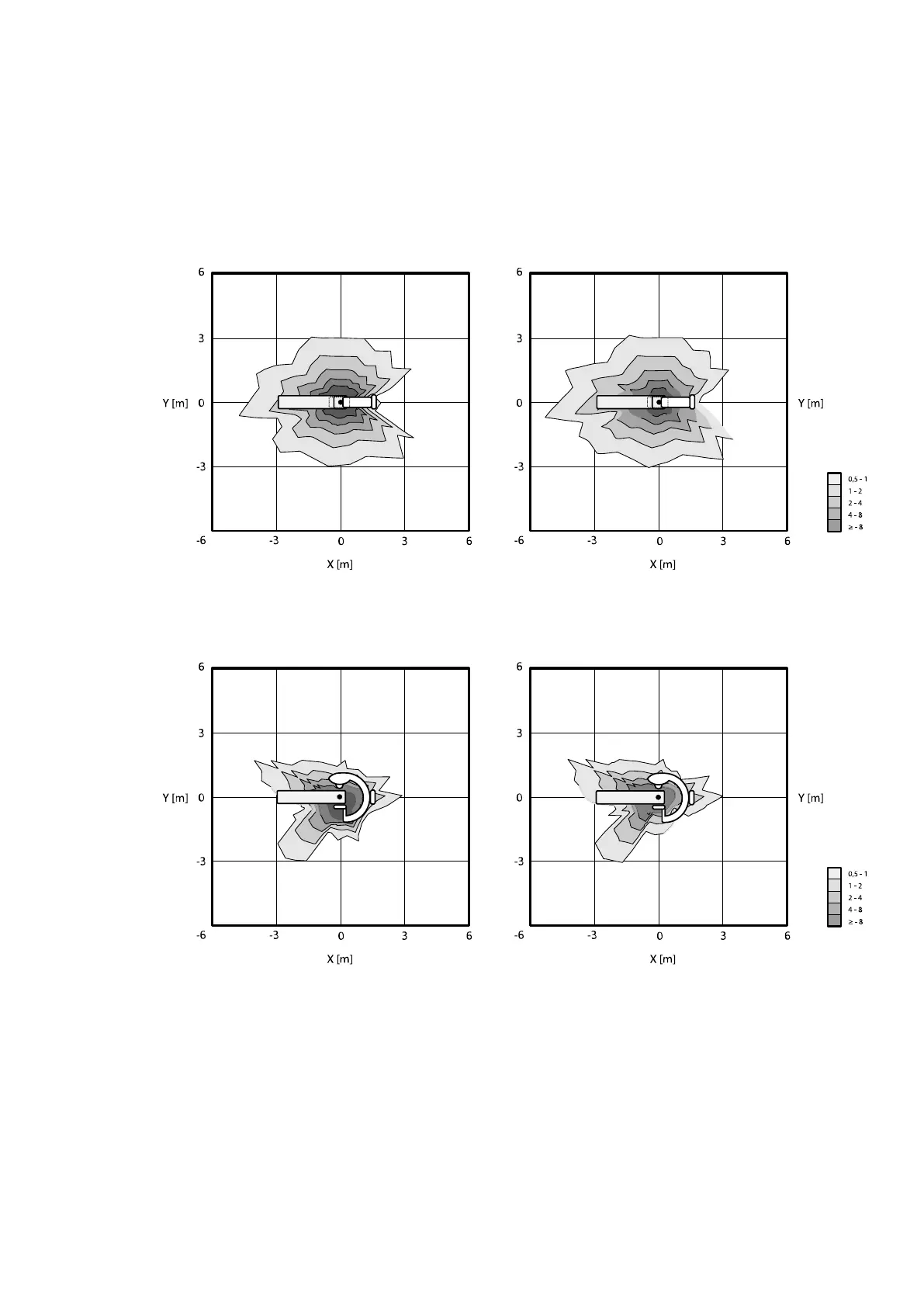

Figure 138 Isok
erma map at 100 cm (le) and 150 cm (right) above the oor, μGy/(Gy x cm²)
Lateral X-ray Direcon
Figure 139 Isok
erma map at 100 cm (le) and 150 cm (right) above the oor, μGy/(Gy x cm²)
16.21.4 Isokerma Maps for B20 System
The following illustraons show normalized isokerma maps at 100 cm (39.37 in) and 150 cm (59.10 in)
above the oor, with swivel out.
The following technique factors are used:
• Fluoroscopy 120 kV
• Source-to-image distance 100 cm
