• Field size 10 x 10 cm
•
No addional lter
Frontal X-ray Direcon

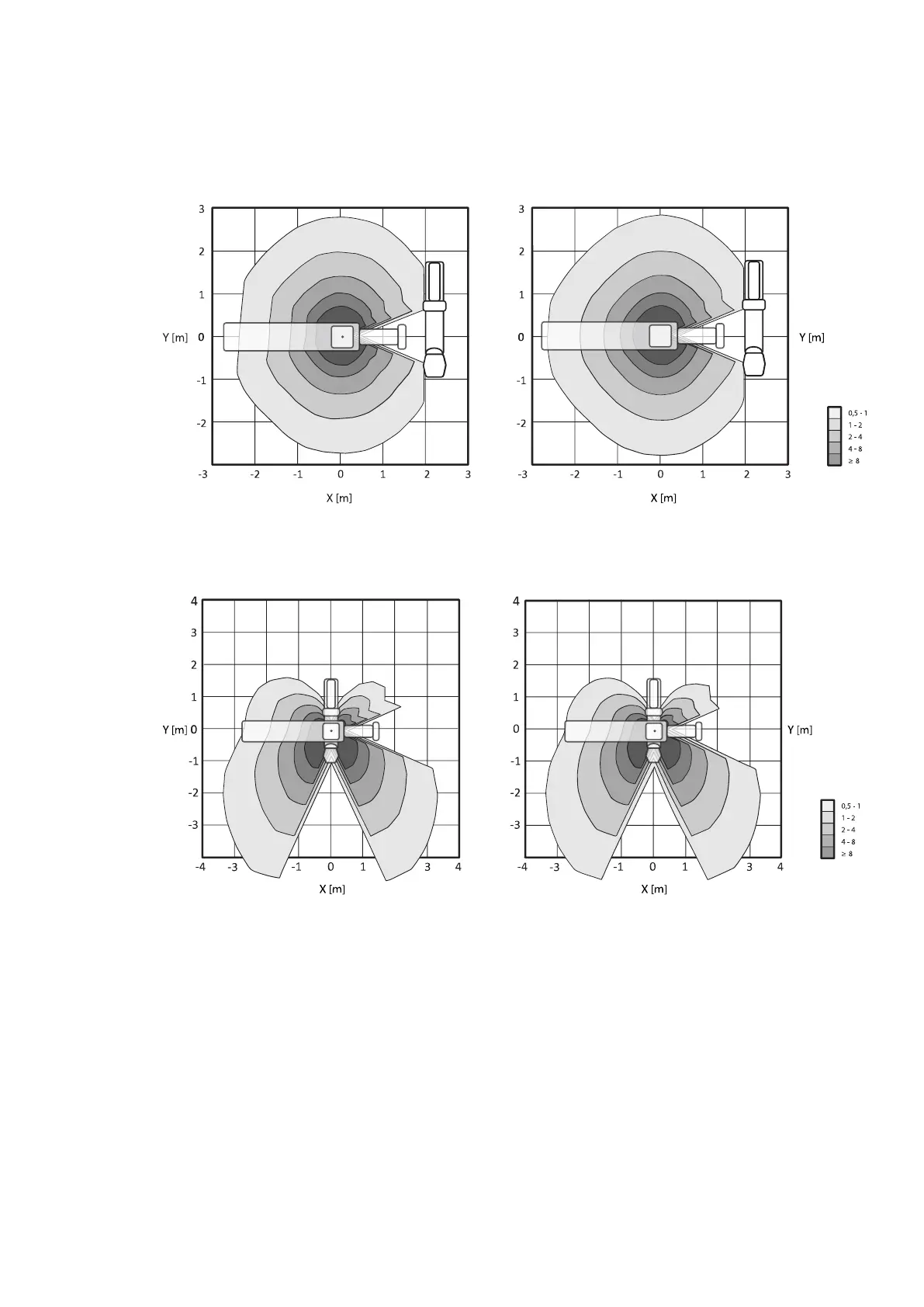

Figure 140 Isok
erma map at 100 cm (le) and 150 cm (right) above the oor, μGy/(Gy x cm²)
Lateral X-ray Direcon
Figure 141 Isokerma map at 100 cm (le) and 150 cm (right) above the oor, μGy/(Gy x cm²)
16.21.5 Addional Filtering
This secon provides informaon about the eect of ltraon on air kerma values.
The maximum aenuaon equivalent of the tabletop is 1.59 mm Al (at 75 kV/HVL 3.5 mm Al).
The minimum inherent ltraon (at 75 kV/HVL 3.5 mm Al) of the X-ray tube is 2.5 mm Al.
The aenuaon equivalent (at 75 kV/HVL 3.5 mm Al) of other materials in the X-ray beam are as
follows:
• Collimator: 0.1 mm Al
• X-ray tube cover: 0.1 - 0.2 mm Al
