The maximum permissible weight on the tabletop is 275 kg (600 lbs). This includes the weight of all
accessories tha
t are aached to the tabletop.

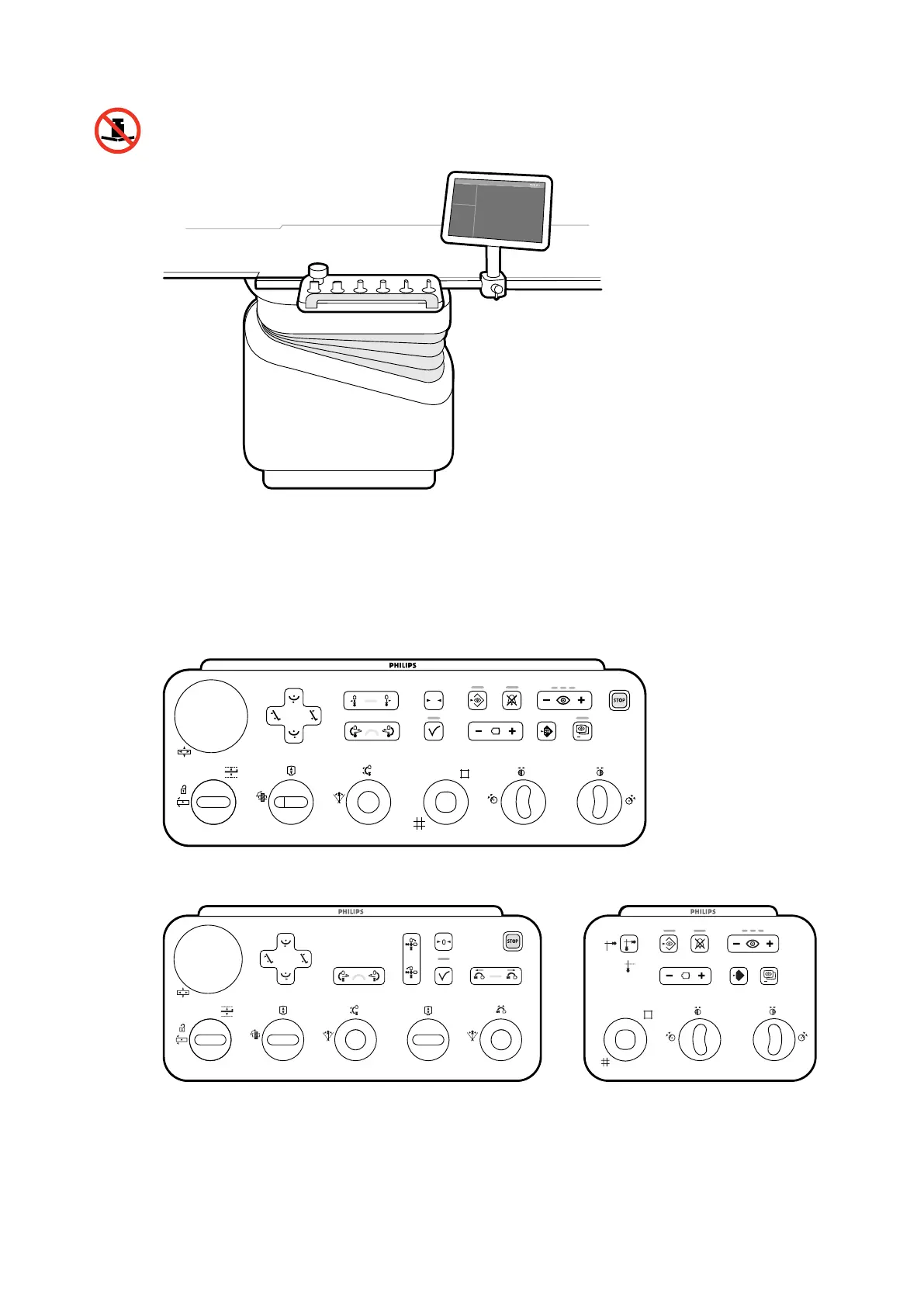

Figure 7 Control module and touch screen module on the accessory rail
3.1.8 Control Module
The control module provides the controls required to adjust the posion of the table and stand, and to
perform image funcons during acquision.
0
Figure 8 Monoplane control module
Figure 9 Biplane c
ontrol modules: geometry control module (le) and imaging control module (right)
Up to three control modules can be used with each system.
About the System Equipment in the Ex
aminaon Room
Azurion Release 1.2 Ins
trucons for Use 33 Philips Healthcare 4522 203 52421
