System Label

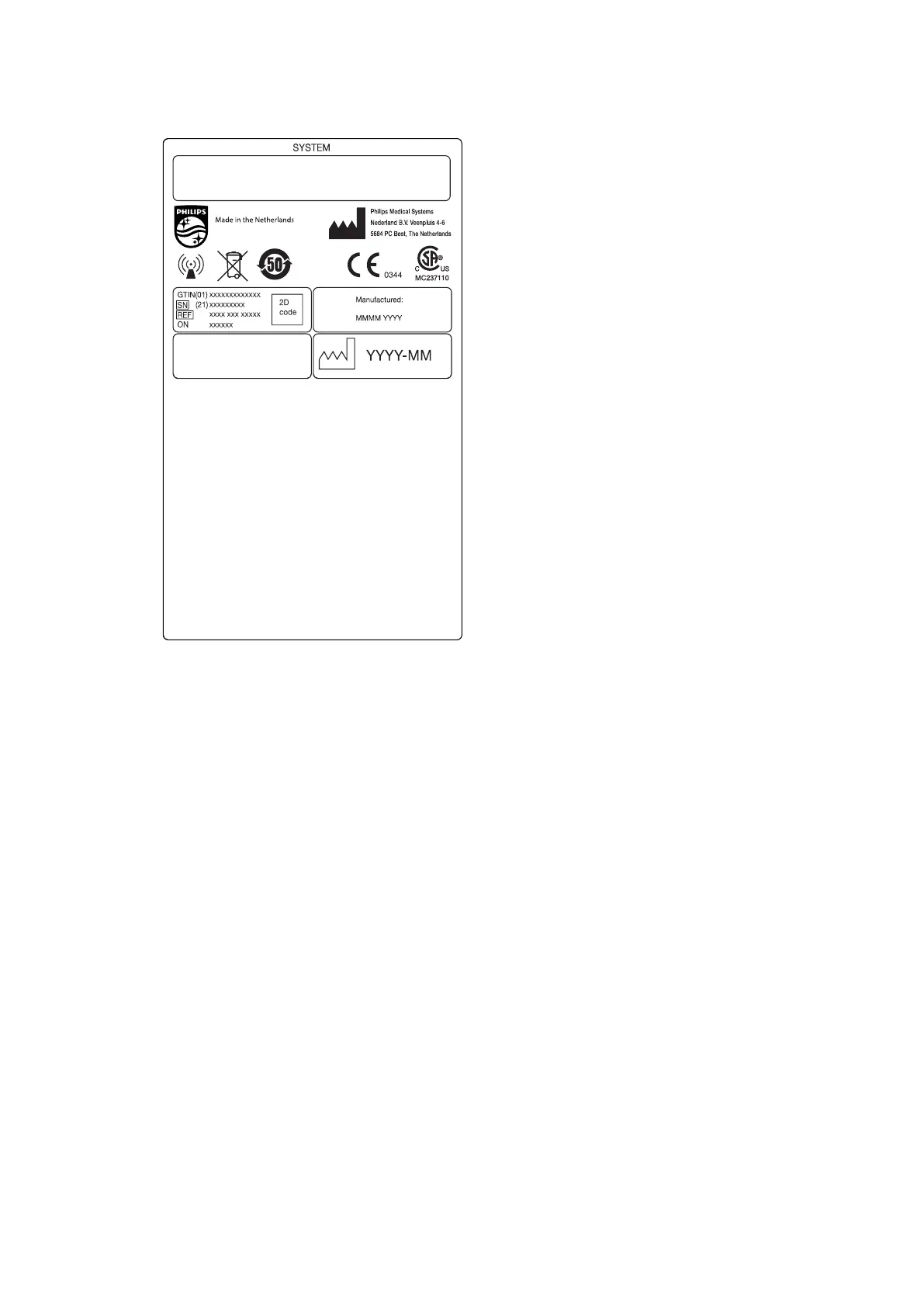

Figure 146 S

ystem label

C-arm Stand Label

Labels for the following items can be found on the back of the C-arm:

• X-ray tube assembly

• Beam liming device (collimator)

• Image receptor (detector)

Technical In

formaon Equipment Labels

Azurion Release 1.2 Ins

trucons for Use 326 Philips Healthcare 4522 203 52421
