NOTE Do not point the laser into other people’s eyes, as there is a risk of injury.
Two di
erent versions of the viewpad are available: Cardiac and Vascular. The Vascular viewpad has an
extra row of buons at the boom of the viewpad.
When not in use, store the viewpad in the holder provided on the side of the touch screen module.
1
2
3
4
5
6
7
8 9
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8 9
10
11
12

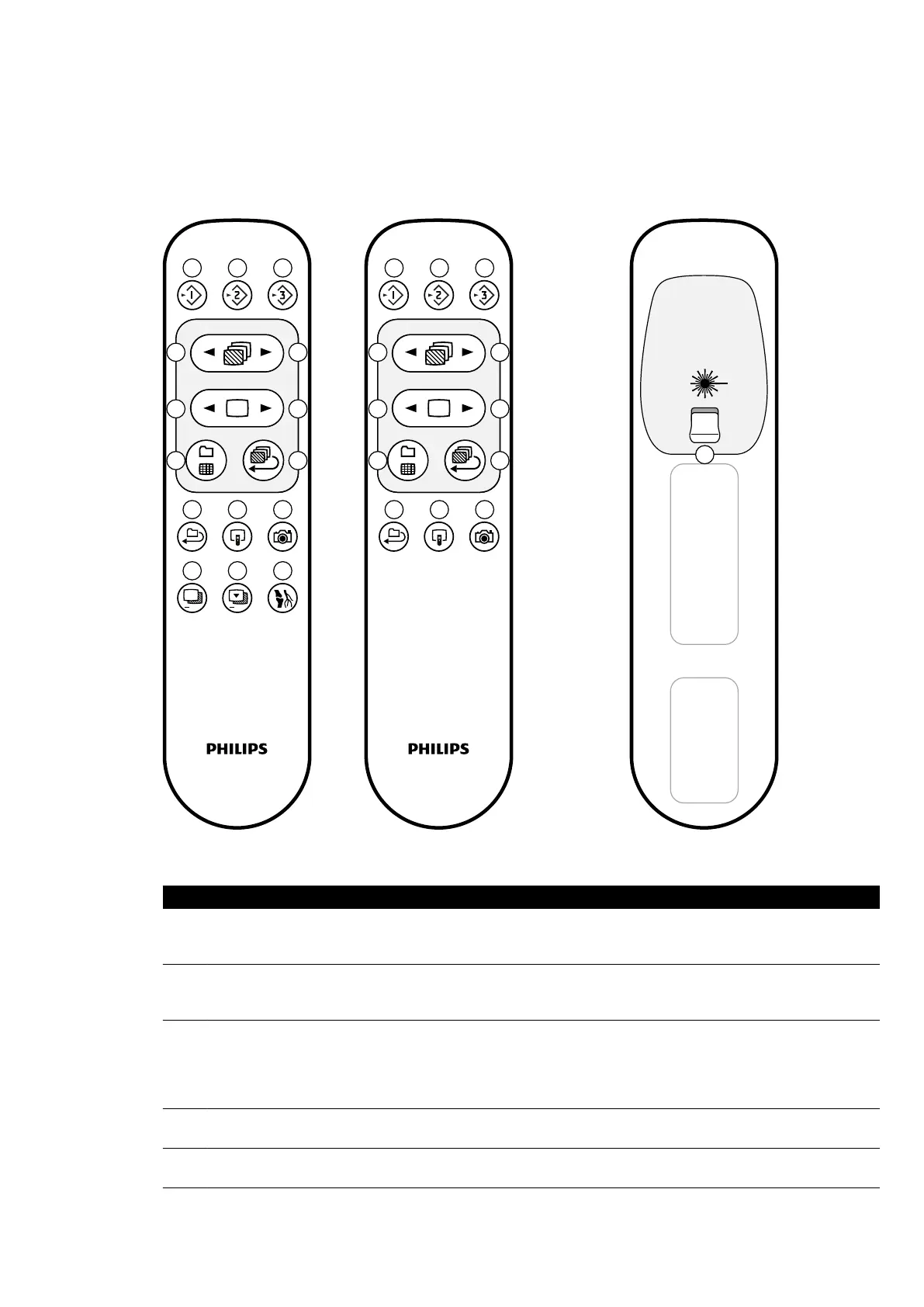

Figure 191 Vie
wpad: Vascular version (le), Cardio version (middle), and underside (right)
Legend
1
Copies the current image to the Reference 1 win-
do
w
On biplane systems, the frontal image is copied.
9 Plays the current series in looped movie mode
2
Copies the current image to the Reference 2 win-
dow
On biplane systems, the lateral image is copied.
10 Plays all series of the study in looped movie mode
3
Copies the current image to the Reference 3 win-
dow
On biplane systems, images from both channels are
copied, and are displayed side by side and
synchronized.
11
Moves the focus of the viewpad between the live X-
ray window and each of the reference windows
4 Displays the previous series 12
Creates a snapshot of the current image and stores
it with the study
5 Displays the next series 13
Enables or disables subtracon (vascular viewpad
only)
Quick Reference Viewpad
