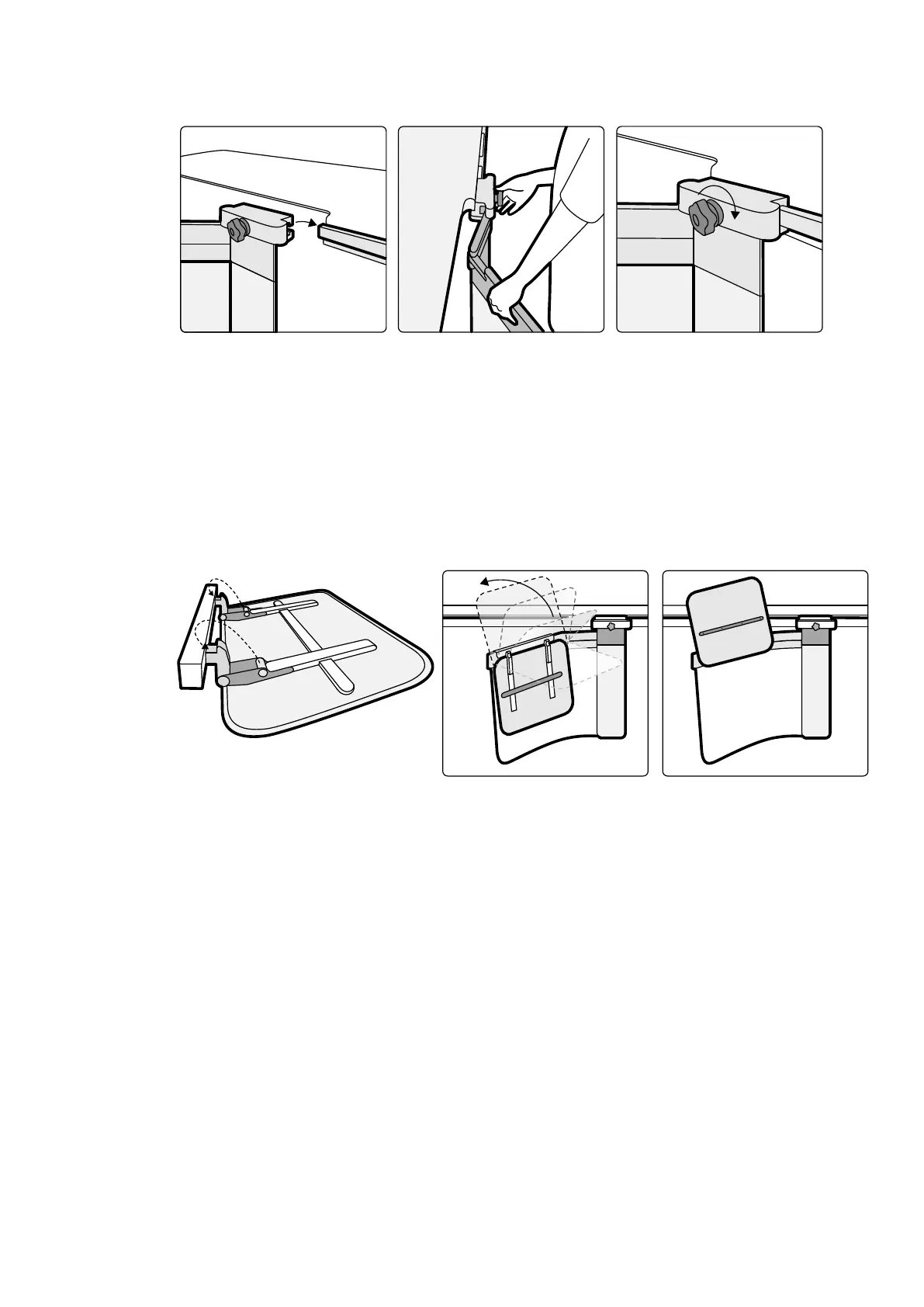

Figure 42 Aaching the r
adiaon shield with the clamping device
5 The radiaon shield can be placed in the following posions:
• Working posion with both the lower and upper shield in use.
• Working posion with the lower shield only in use (the upper shield is folded down).
• Parking posion (shield stowed under the table).
6 To use the upper shield, li the shield upward unl the pins drop into the notches.
Figure 43 Using the upper shield
7 To park the radiaon shield, fold down the upper shield if deployed and push the lower shield
underneath the table.
Preparing a P
aent Study Preparing the System
