Toshiba e-STUDIO4500c Service Manual

September 2006 Replacement and Adjustment
B706-13
Peripherals
3.5.3 SHIFT TRAY EXIT SENSOR

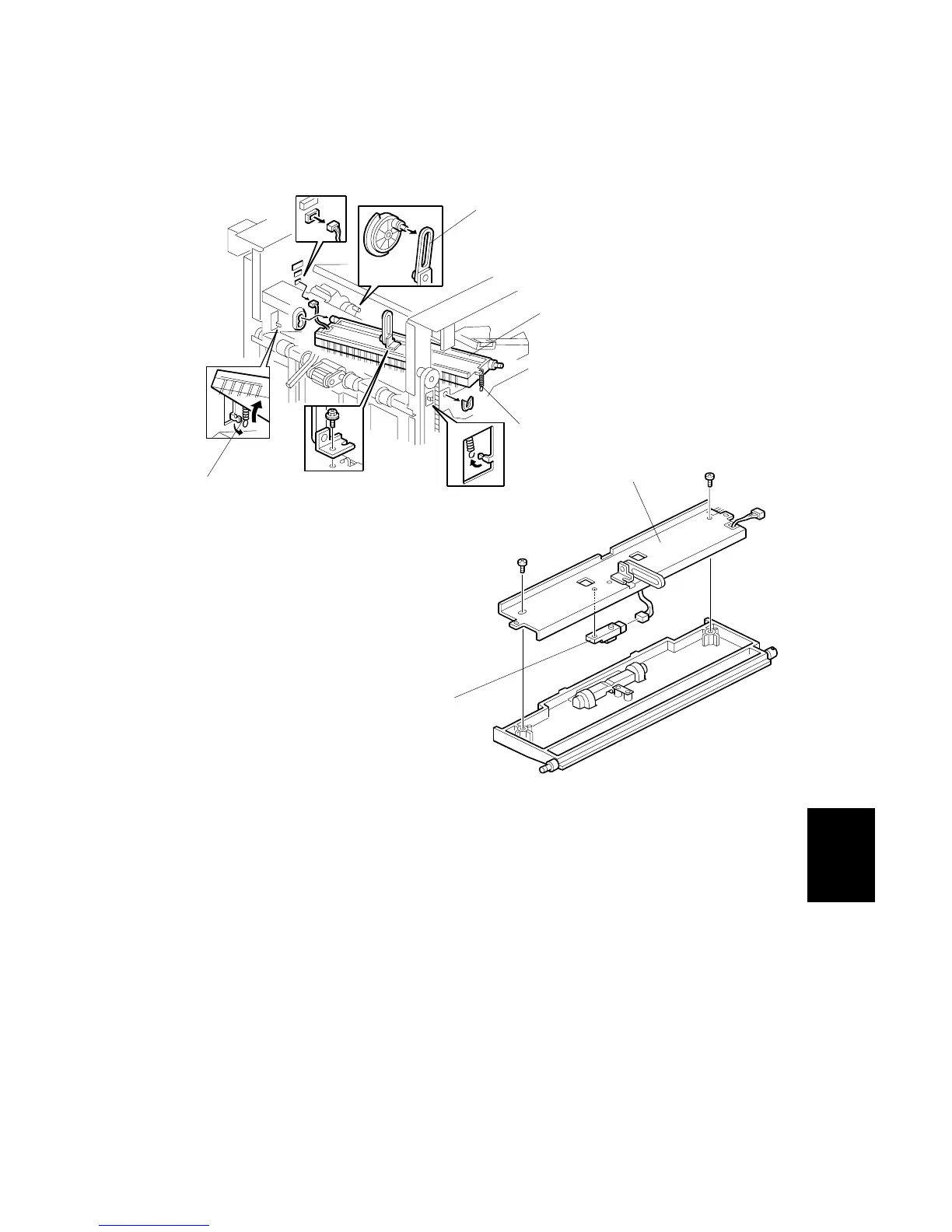

1. Remove the top cover.
2. Open the front door.
3. Remove the inner cover.
4. Release the upper exit guide springs [A] (x 2).
5. Disconnect the link [B] from the cam ( x 1).
6. Remove the upper exit guide [C] ( x 1,  x 1).
7. Remove the guide stay [D] ( x 2).
8. Replace the shift tray exit sensor [E] ( x 1) ( x 1).
B478R512.WMF
B478R511.WMF
[D]
[A]
[C]
[A]
[E]
[B]
