PRE-STACKING August 2006
B700-38
2.5 PRE-STACKING

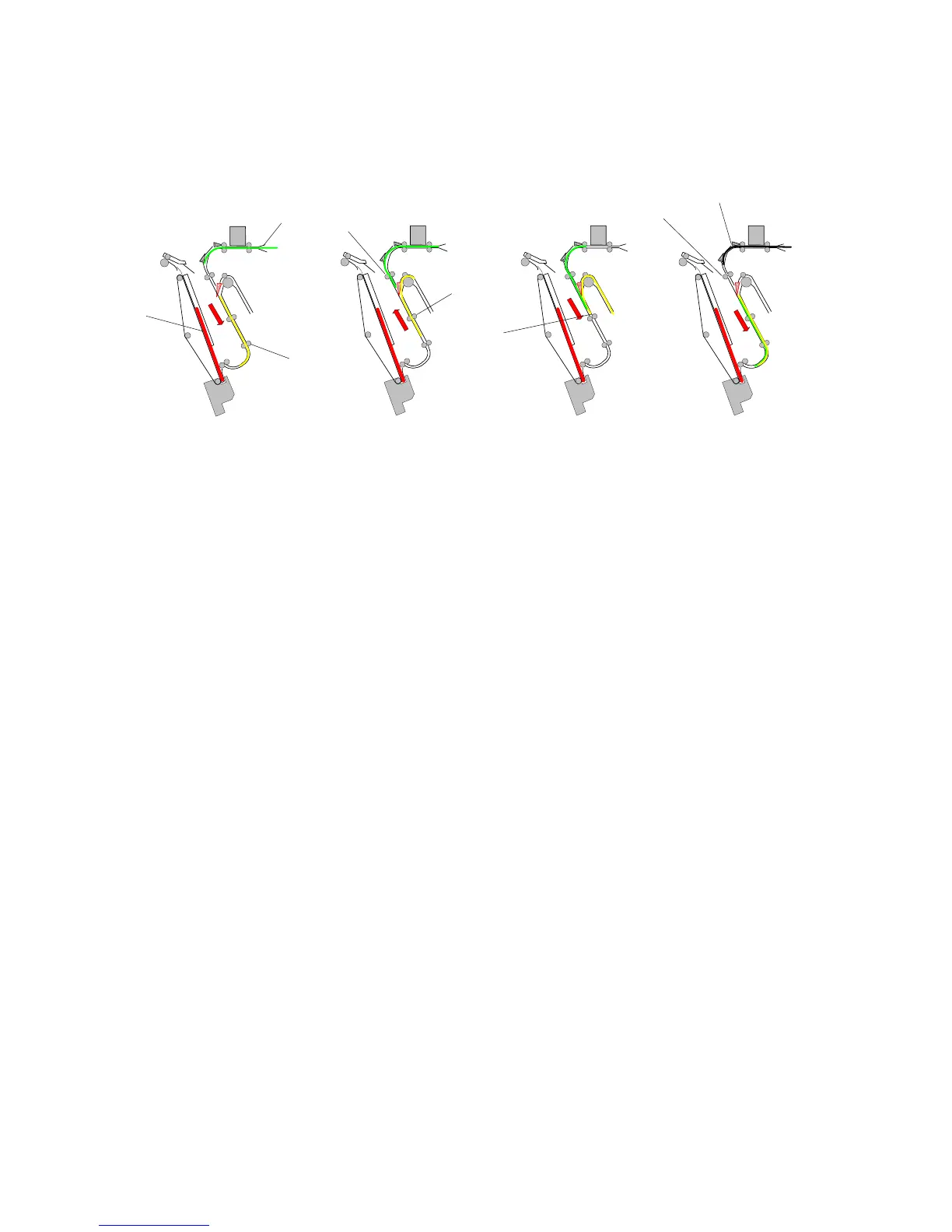

This example describes what happens to Set 2 during the feed and stapling cycle
of sets that contain three pages.
[A]: While the Set 1 is being stapled in the staple tray [1], the 1st sheet of Set 2 [2]
feeds to the pre-stack tray, and the 2nd sheet of Set 2 [3] enters the finisher.
[B]: The pre-stack junction gate opens and the 1st sheet of Set 2 [4] switches back
to the top of the pre-stack tray as the 2nd sheet of Set 2 [5] starts to descend.
[C]: As the 2nd sheet of Set 2 continues to descend, the 1st sheet of Set 2 is fed
from the pre-stack tray. At this time the leading edges [6] of both sheets are
even.
[D]: The trailing edges of the 1st and 2nd sheets of Set 2 pass the junction gate [7]
as the 3rd sheet of Set 2 [8] enters the finisher.
