DUPLEX UNIT August, 2006
3-104
3.10 DUPLEX UNIT
3.10.1 DUPLEX INVERTER MOTOR

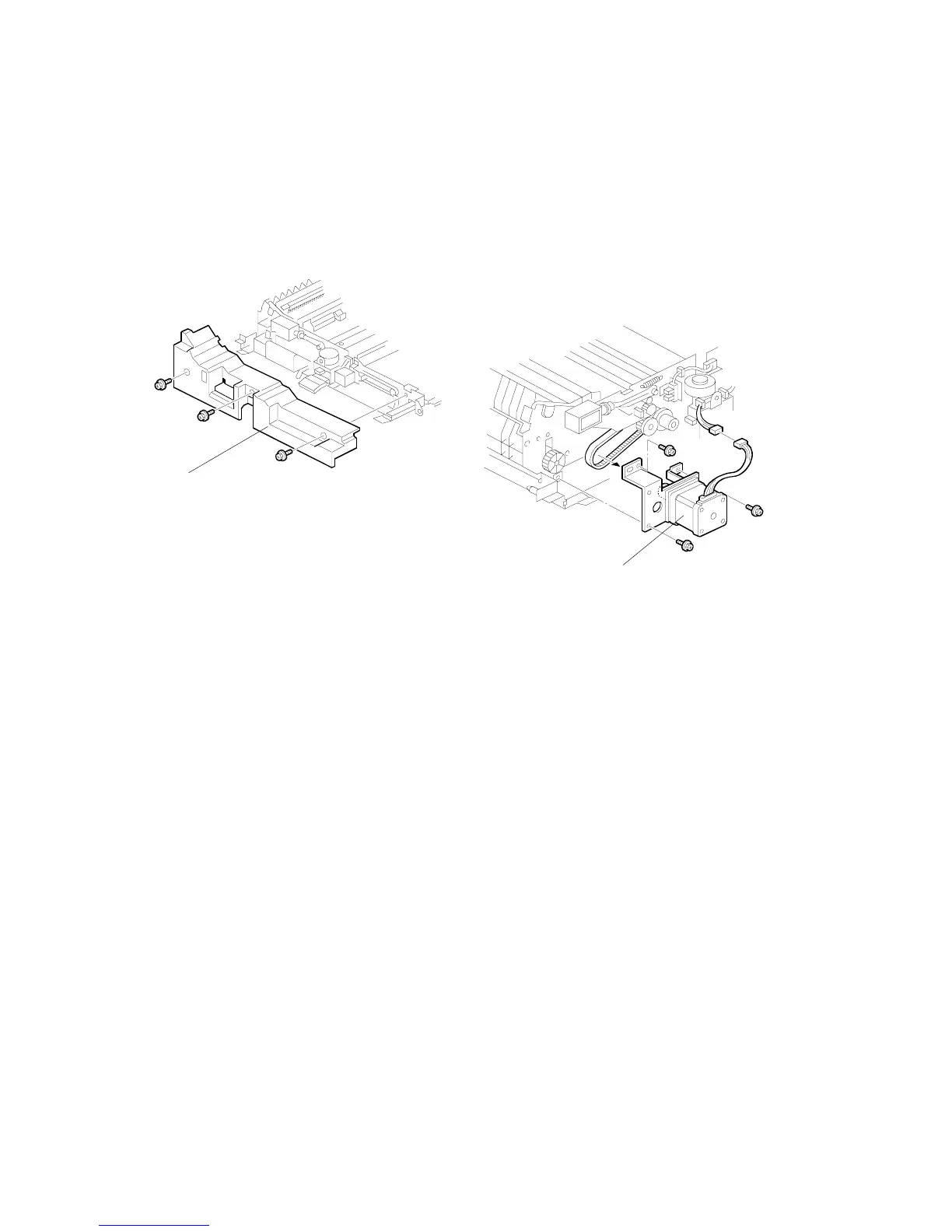

• Pull out the duplex unit.
[A]: Duplex unit front cover ( x3)
[B]: Duplex inverter motor ( x3, x1, Timing belt x1, Gear x1)
B132R500.WMF
B132R504.WMF
[A]
[B]
