September 2006 Replacement and Adjustment
B706-7
Peripherals
3.2.2 POSITIONING ROLLER
1. Open the front door.
2. Remove the snap ring [A].
3. Release the rubber belt [B].
4. Replace the positioning roller [C].

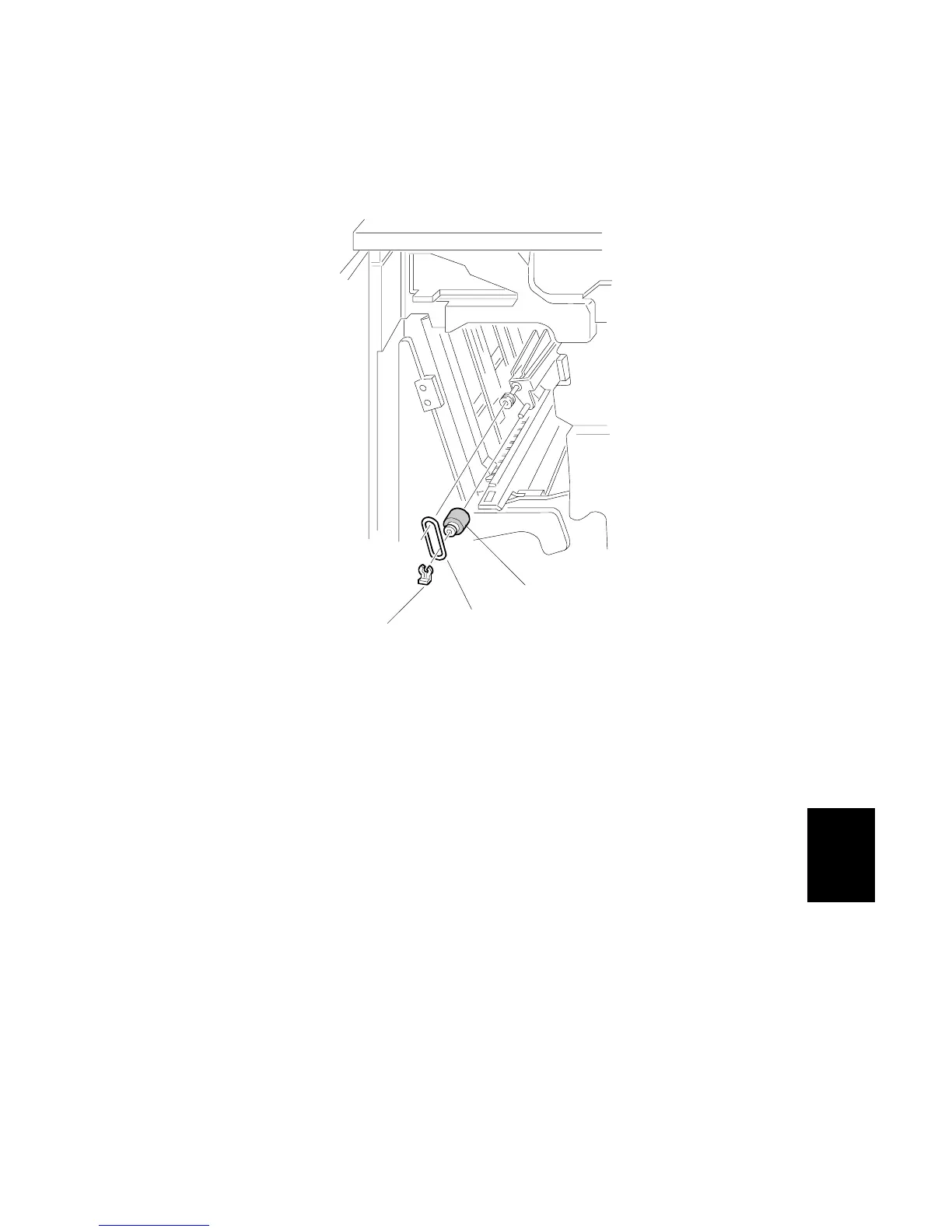

B478R506.WMF
[A]
[B]
[C]
06/09
