August, 2006 PAPER FEED (TRAYS 2, 3)
3-127

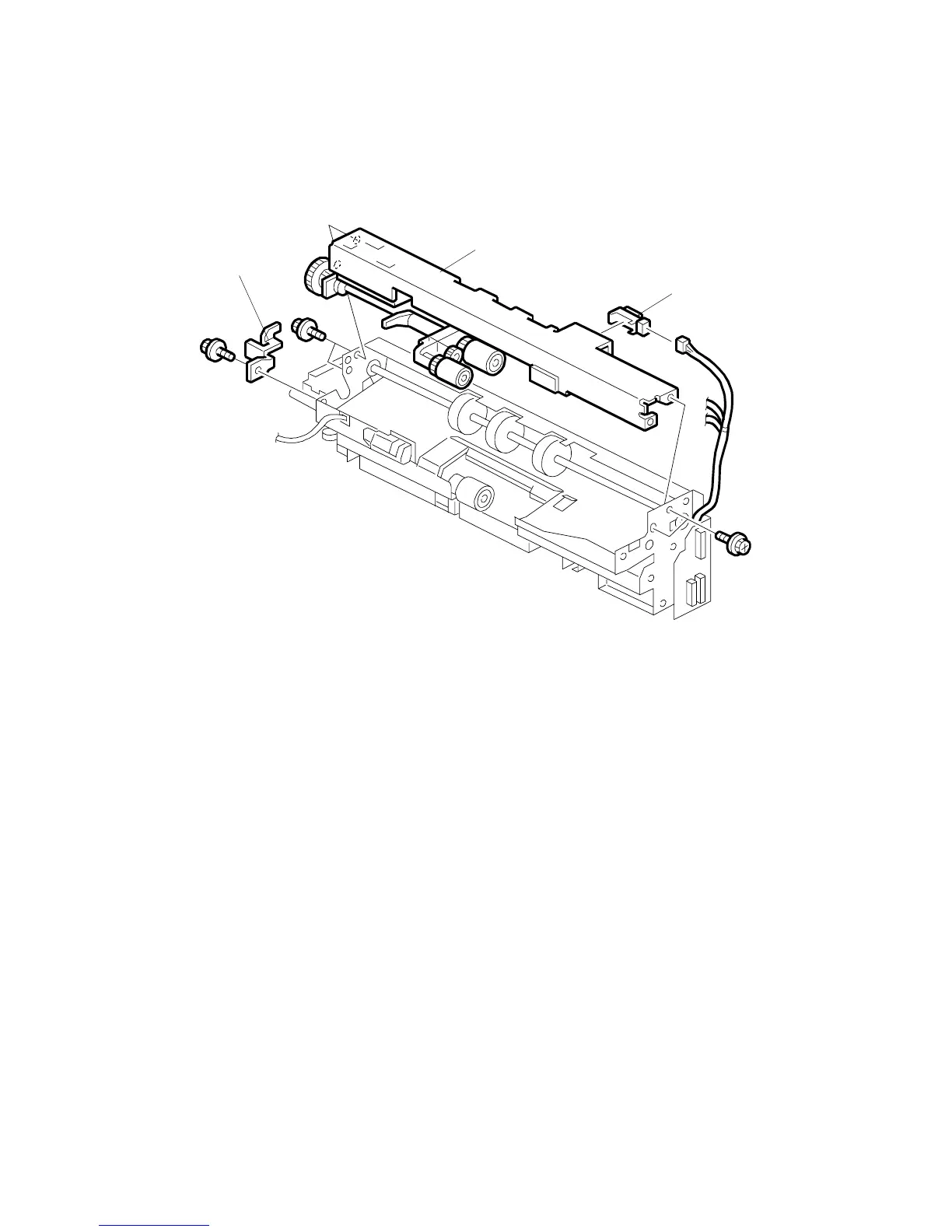

3.12.5 VERTICAL TRANSPORT SENSOR
Remove:
• Feed unit (3.12.2)
[A]: Bracket ( x1)
[B]: Upper unit ( x4)
[C]: Vertical transport sensor ( x1)
B132R607.WMF
[A]
[B]
[C]
