Toshiba e-STUDIO4500c Service Manual

LUBRICATION POINTS August, 2006
2-14

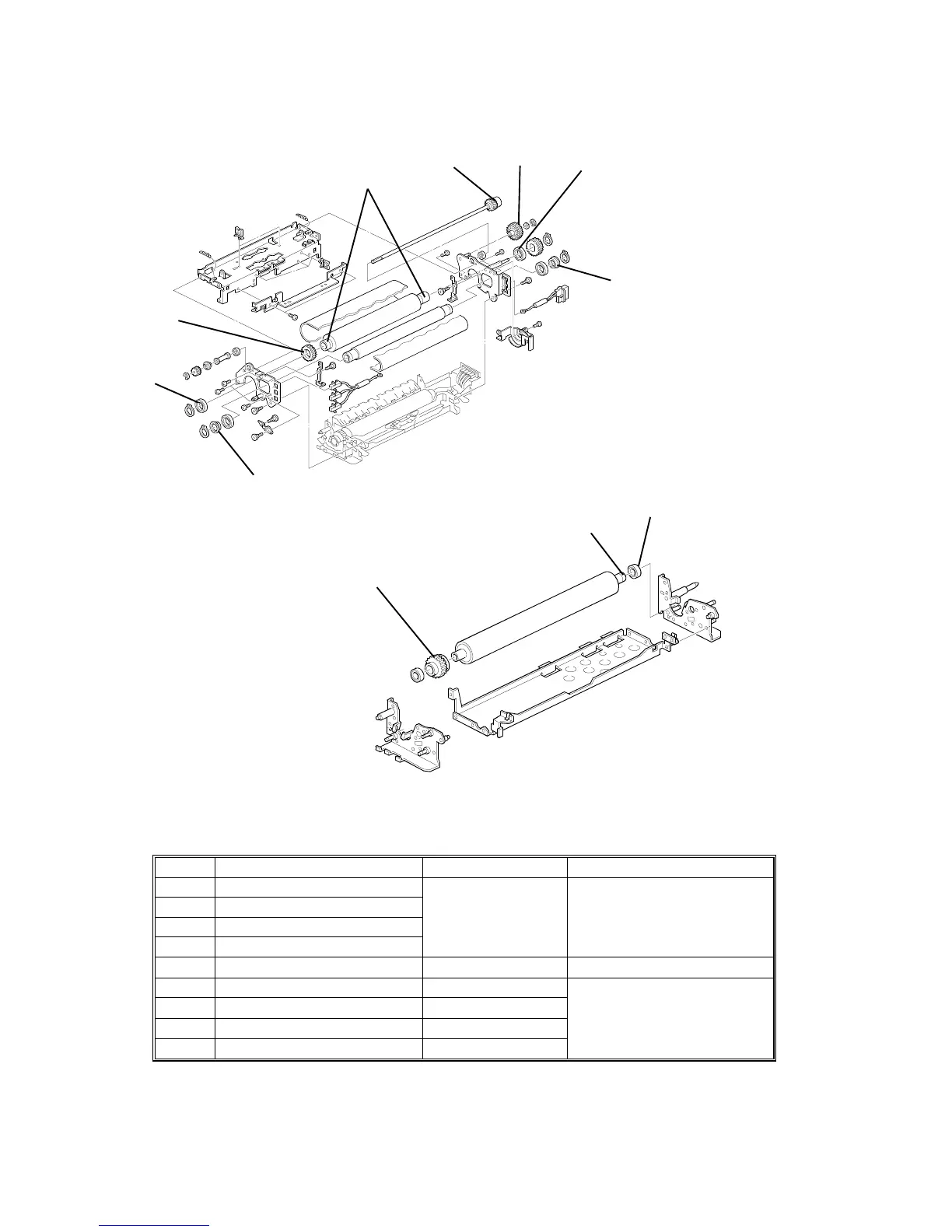

Fusing Unit
Part Name Lubricant Comment
[A] Hot Roller Drive Gear
[B] Exit Idle Gear
[C] Upper Gear
[D] Lower Gear
Barrierta S552R Brush all gear teeth
[E]
Bearing Race φ20 x φ32 x 7
Barrierta S552R
[F] Hot Roller Sleeve
[G]
Bearing Race φ25 x φ37 x 7
[H] Hot Roller Sleeve
[I] Bearing Race
Be sure to brush both ends.
B132P906.WMF
B132P907.WMF
[A]
[B]
[C]
[H]
[G]
[I]
[G]
[I]
[D]
[E]
[F]
