Toshiba e-STUDIO4500c Service Manual

ELECTRICAL COMPONENTS August 2006
B700-30

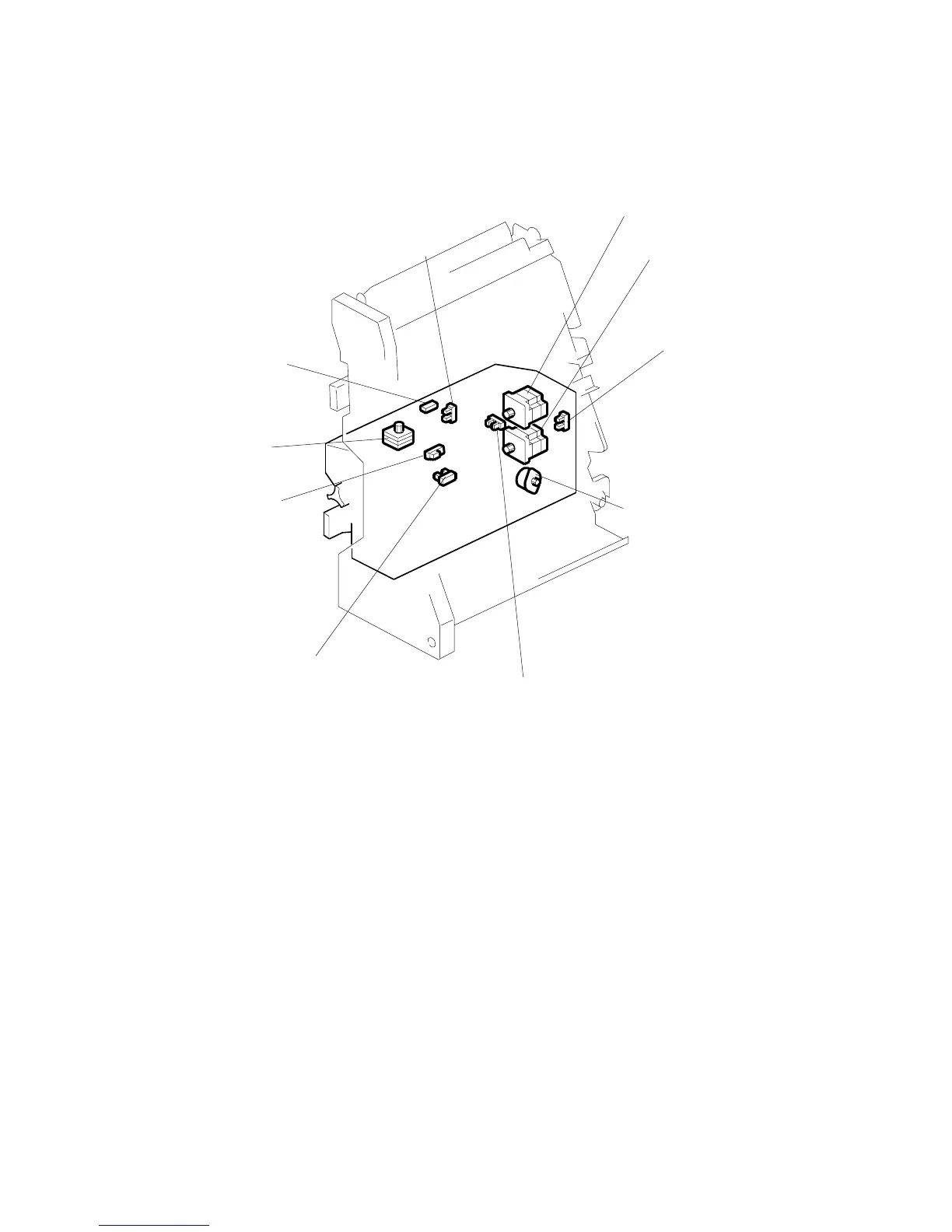

2.2.5 B700 FOLD UNIT
1. Clamp Roller HP Sensor (S25)
2. Fold Roller Motor (M12)
3. Fold Plate Motor (M11)
4. Fold Plate HP Sensor (S29)
5. Fold Unit Bottom Fence Lift Motor (M16)
6. Fold Cam HP Sensor (S30)
7. Fold Bottom Fence HP Sensor (S28)
8. Fold Unit Entrance Sensor (S26)
9. Clamp Roller Retraction Motor (M8)
10. Fold Unit Exit Sensor (S31)
B700D205.WMF
B700 only
1
2
3
4
5
6
7
8
9
10
