Toshiba e-STUDIO4500c Service Manual

REPLACEMENT AND ADJUSTMENT September 2006
B706-4

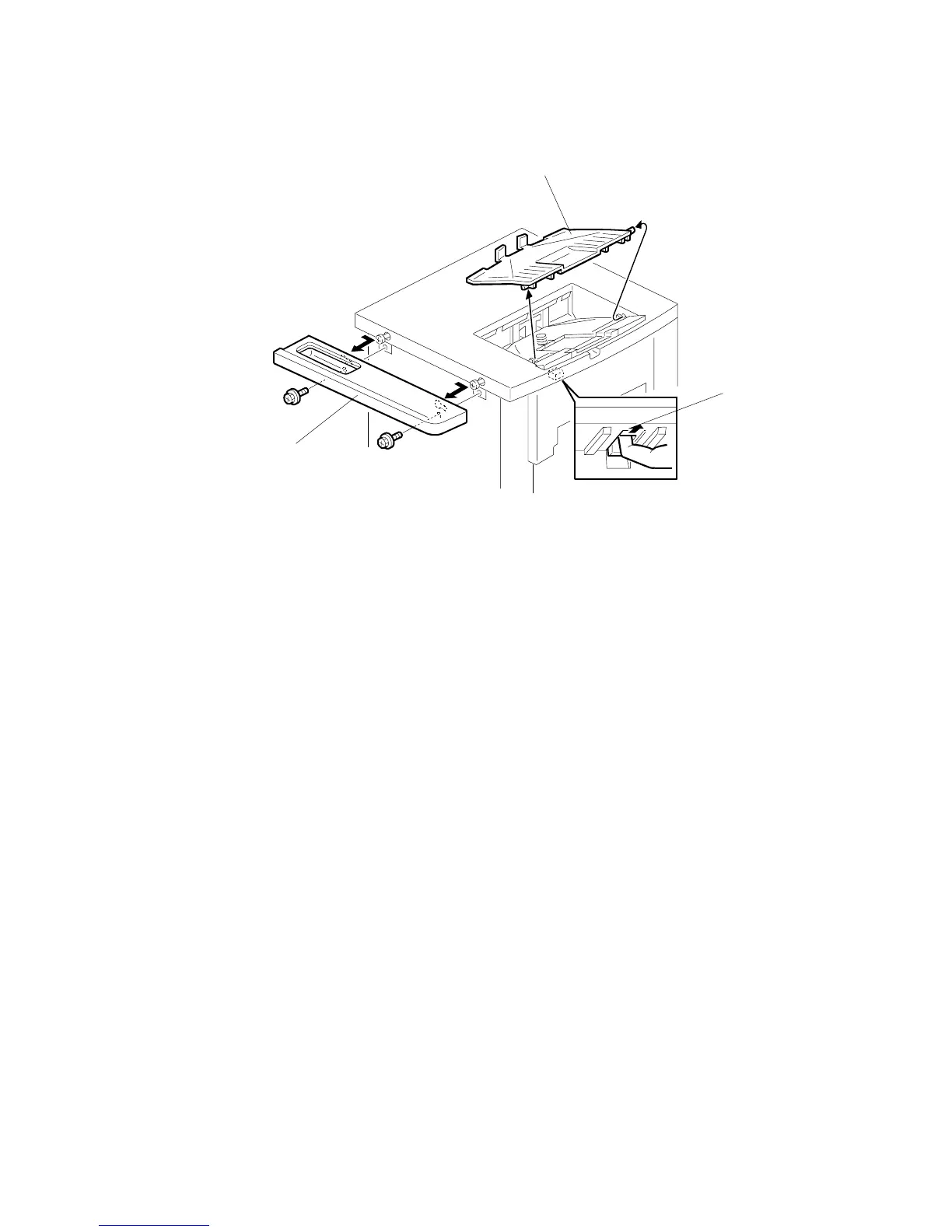

Side Table and Upper Tray
1. Remove the side table [A] ( x 2). Slide to the right to remove it.
2. Click the release lever [B] and remove the upper tray [C].
B478R503.WMF
[A]
[B]
[C]
06/09
