Toshiba e-STUDIO4500c Service Manual

BASIC PROCEDURES August 2006
B700-2
1.1.2 UPPER TRAY, END FENCE
1. Remove the rear cover. (1.1.1)

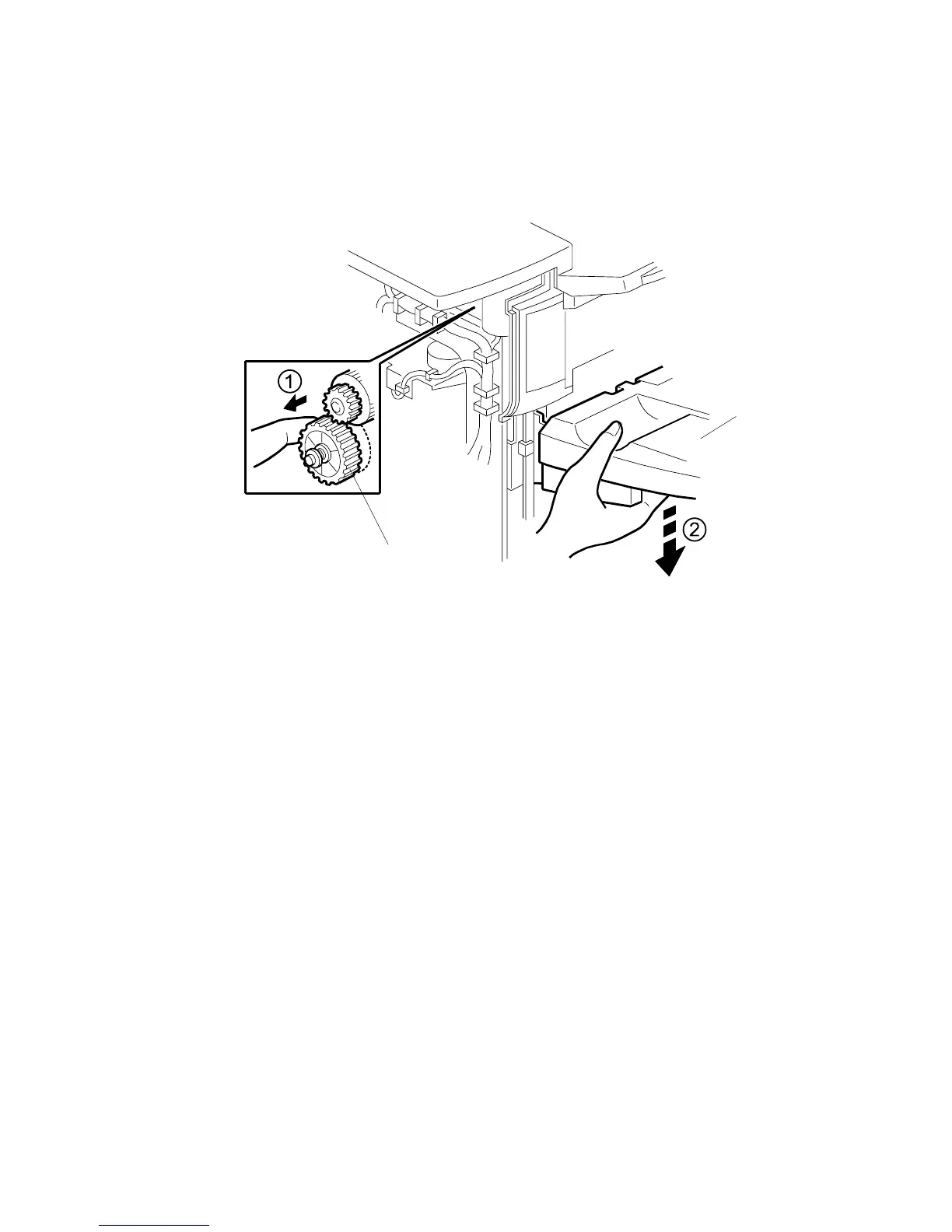

2. To lower the upper tray:
• Support the tray [A] with your right hand.
• Pull gear [B] toward you  to release.
• Slowly lower the tray  until it stops.
B700R114.WMF
[A]
[B]
