Toshiba e-STUDIO4500c Service Manual

August, 2006 PCU (PHOTOCONDUCTOR UNITS)
3-49
3.5.2 DEVELOPMENT GEARS
Remove:
• PCU (3.2.7)
• Development unit (3.5.1)

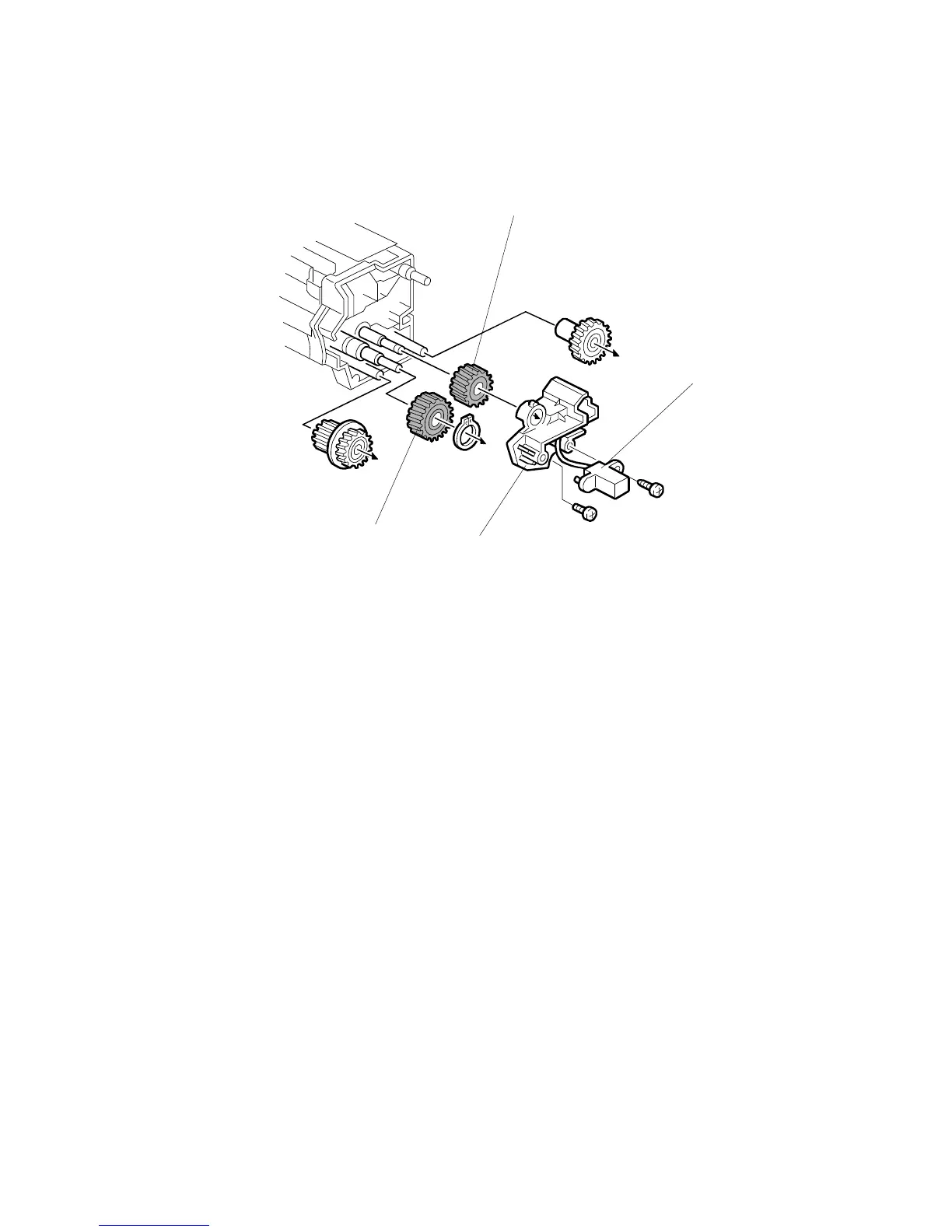

[A]: TD sensor connector ( x1; this is a tapping screw)
[B]: Development gear cover ( x1)
[C]: Development roller idle gear
[D]: Development roller gear (C-ring x1)
B132R225.WMF
[A]
[B]
[C]
[D]
