Toshiba e-STUDIO4500c Service Manual

COMMON REMOVAL PROCEDURES August, 2006
3-22

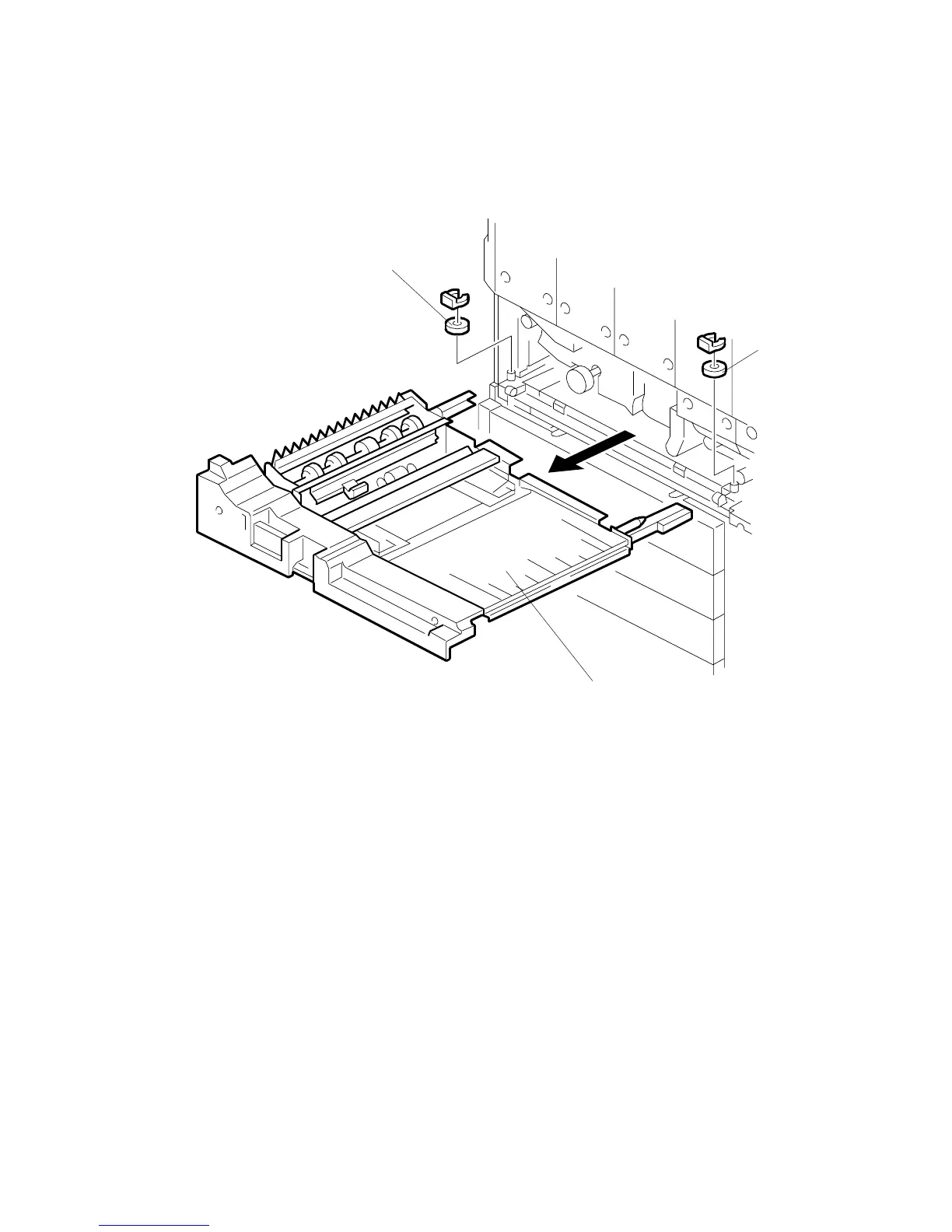

3.2.10 DUPLEX UNIT
1. Open the front door.
2. Pull the duplex unit [A] out until it stops.
3. Remove the clip ring [B] from the left, rear corner ( x1).
4. Remove the clip ring [C] from the right, rear corner ( x1).
5. Lift the duplex unit from the rails and place it on a flat, level surface.
B132R501.WMF
[A]
[B]
[C]
