LASER UNIT August, 2006
3-40
3.4.4 LASER SYNCHRONIZATION DETECTOR
Remove:
[A]: Laser unit (3.4.3)
[B]: Laser synchronization detector ( x2, x1)

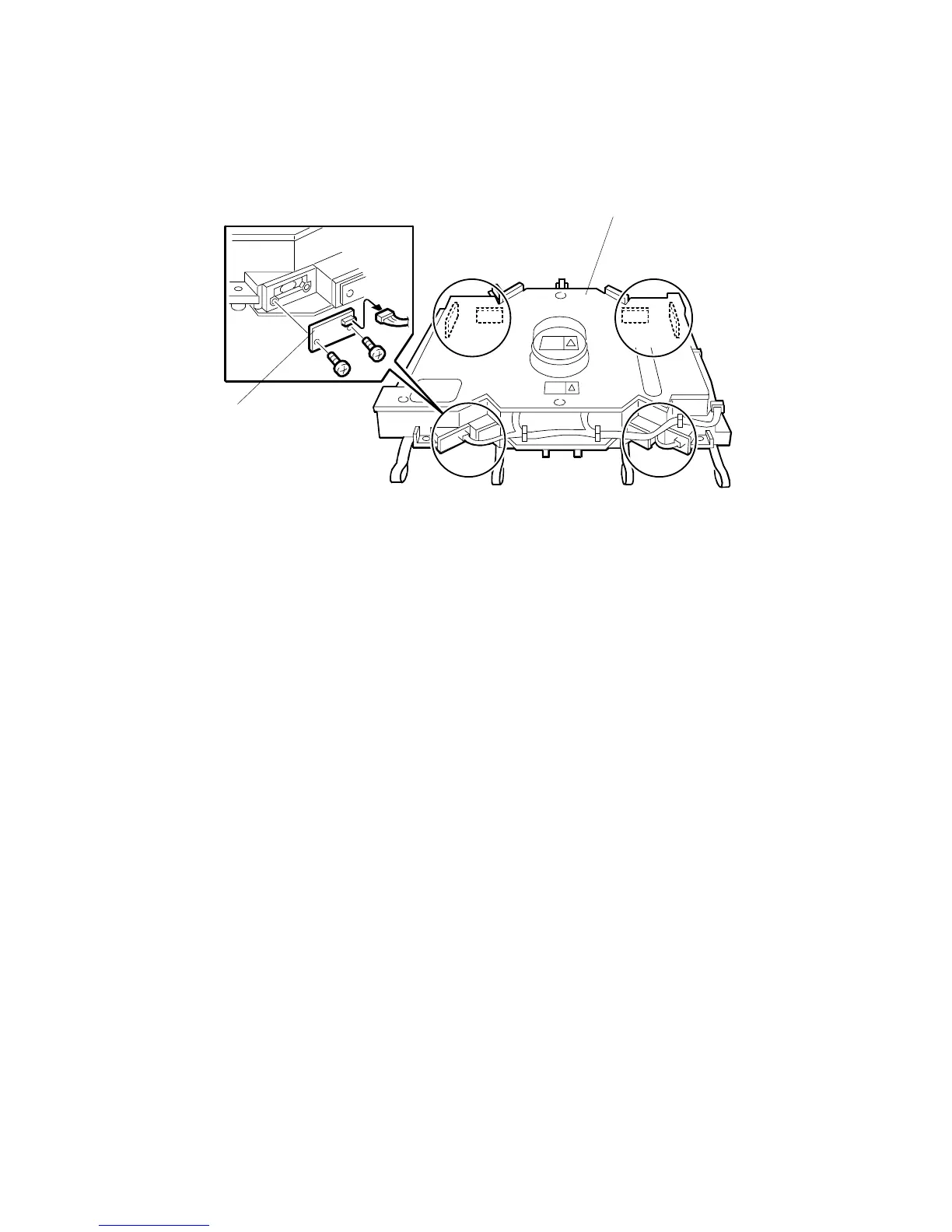

NOTE: In the figure above, note the locations of the 8 laser synchronization
detectors (shown within the circles).
B132R004.WMF
[A]
[B]
