August, 2006 ARDF
3-165

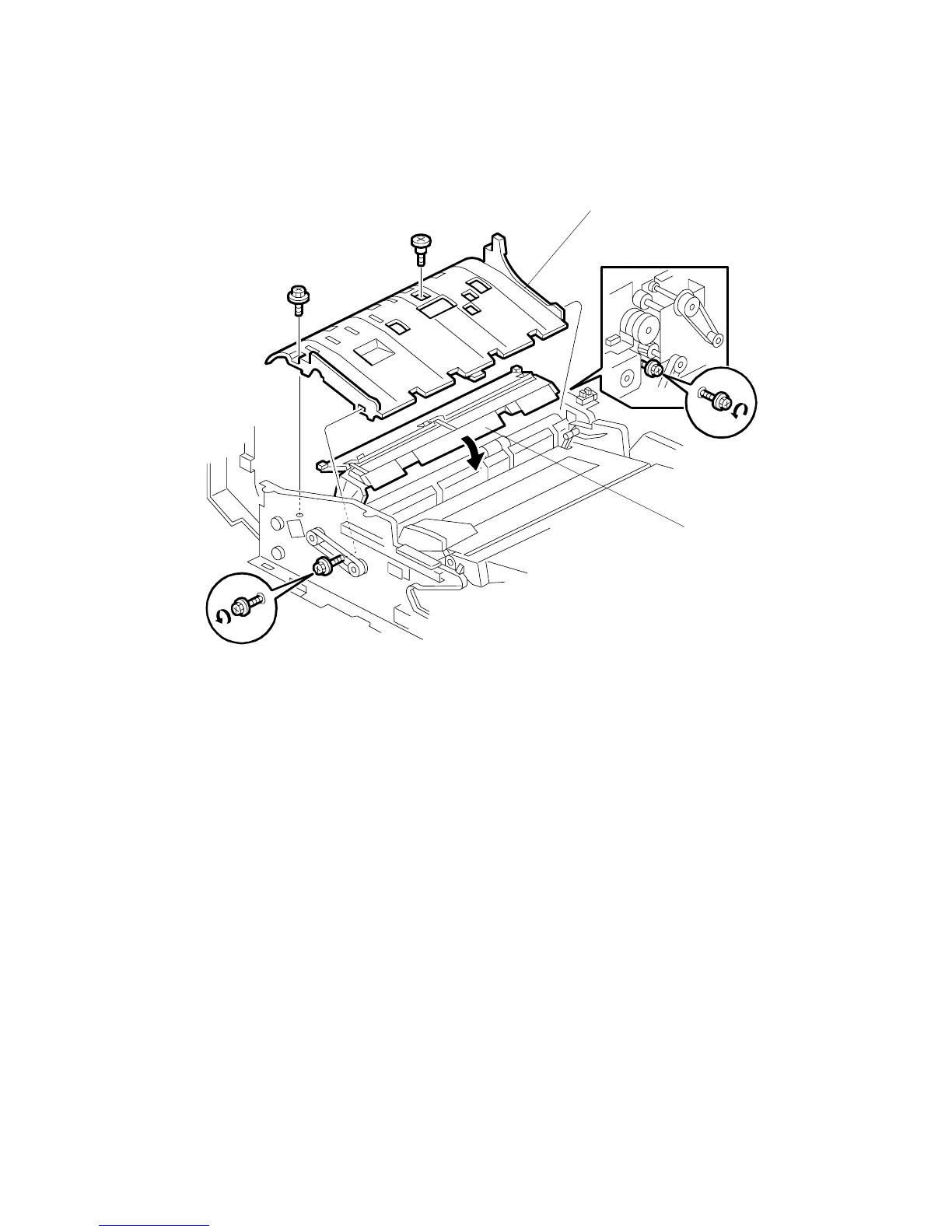

3.18.9 ORIGINAL REGISTRATION, EXIT SENSORS
• Remove the front and rear covers (3.18.1)
• Remove the original feed unit (3.18.2)
[A]: Rotate the inverter guide 180 degrees.
[B]: Original guide plate ( x4).
B132R112.WMF
[A]
[B]
