Toshiba e-STUDIO4500c Service Manual

IMAGE TRANSFER UNIT August, 2006
3-82
3.8.3 ITB CLEANING ROLLER, SCRAPER BLADE
Remove:
• Image transfer unit, ITB cleaning unit (3.8.1)
• ITB cleaning blade, dust collection unit (3.8.2)

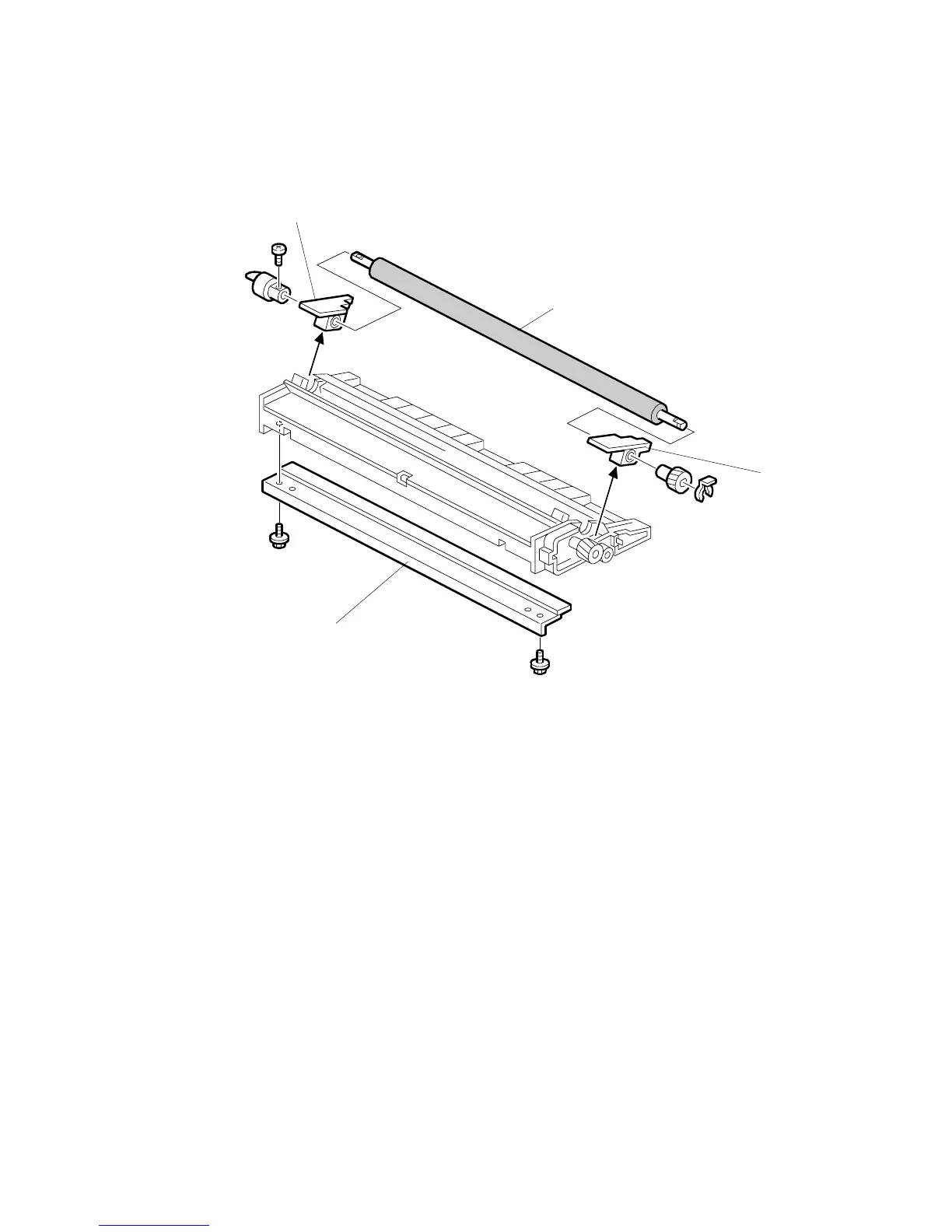

[A]: Rear bracket, coupling ( x1)
[B]: Front bracket ( x1, Gear x1)
[C]: ITB cleaning roller
[D]: ITB cleaning scraper blade ( x2)
Reinstallation
• Do the forced MUSIC adjustment with SP 2111 001 ( 3.19.4).
B132R313.WMF
[A]
[B]
[C]
[D]
