Toshiba e-STUDIO4500c - Ozone Filter, Dust Filters

AIR FILTERS August, 2006
3-154
3.17.2 OZONE FILTER, DUST FILTERS

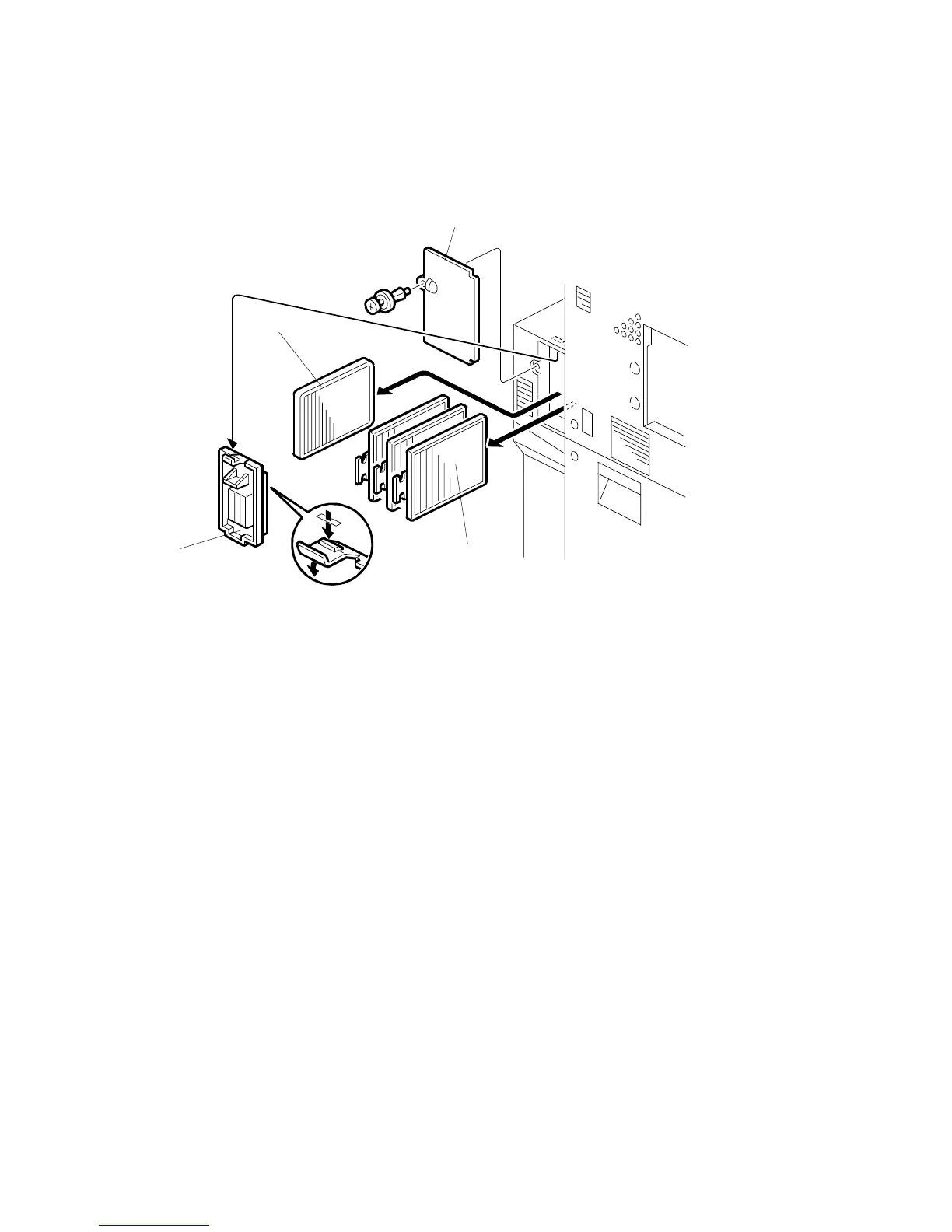

Remove:
[A]: Cover ( x1)
[B]: Inner cover
[C]: Dust filters x3
[D]: Ozone filter
Reinstallation
• Make sure you install the filters as shown. If you do not, you cannot reattach the
cover [B].
B132R729.WMF
[A]
[B]
[C]
[D]
