PCU (PHOTOCONDUCTOR UNITS) August, 2006

3-52

Removing the Cleaning Blade

Remove:

• PCU (3.2.7)

• Charge roller unit (3.5.3)

• Drum (3.5.4)

• Open the upper cover of the cleaning unit 90 degrees to the right.

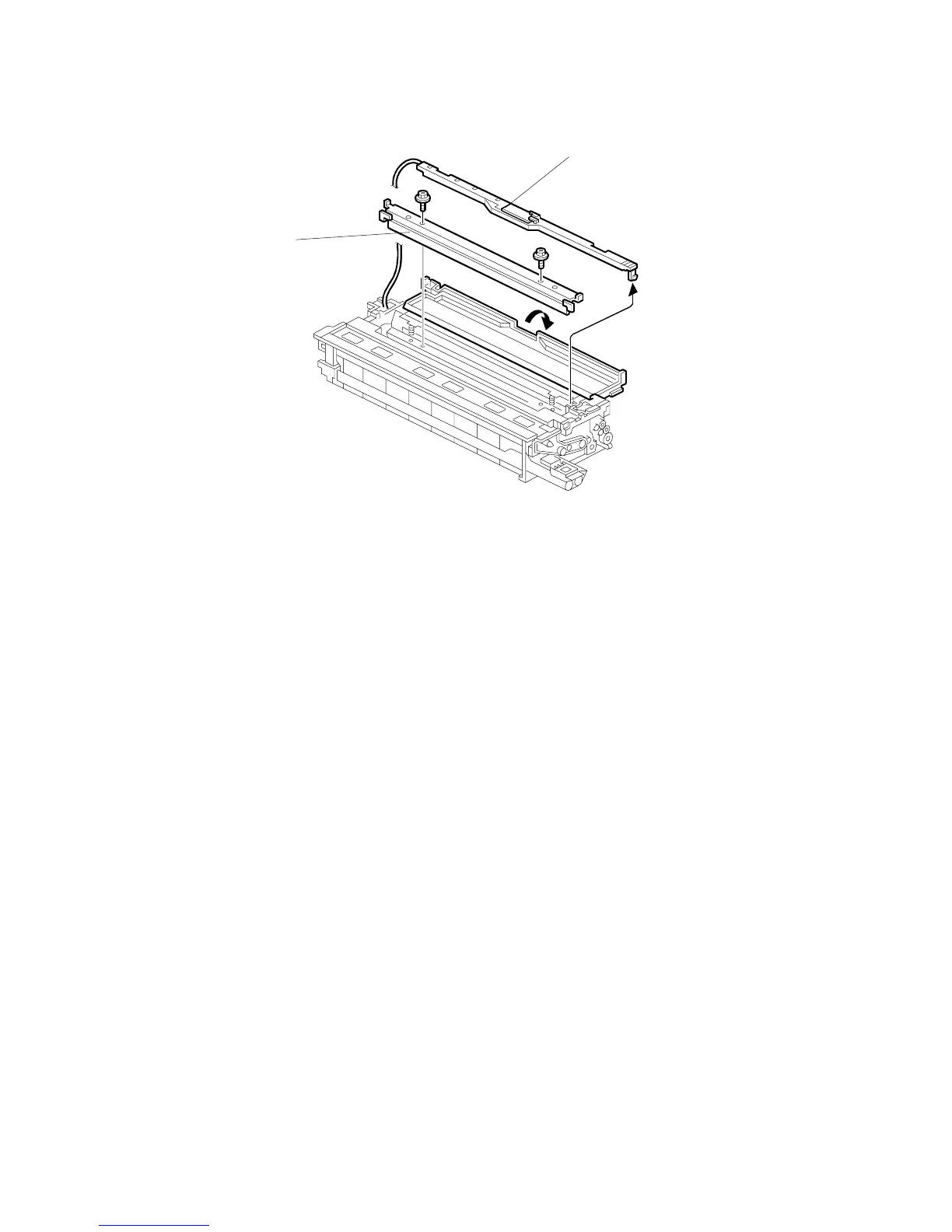

[A]: Bracket

[B]: Cleaning blade ( x2)

Important

• After you replace the cleaning blade, always coat the drum with Lubricant

Powder B1329700. (For more, see the next page.) This must be done even if the

drum is not replaced.

B132R206.WMF

[A]

[B]
