Connect the Upper and Lower Tray Heaters
The machine comes from the factory with the tray heaters disconnected.
NOTE: Heater connection is optional, but the heaters must be connected if the
location has high humidity. Speak with the customer before you connect
the tray heaters.
1. Remove the left lower cover [A] ( x 5).
2. Attach the connectors HT5 [B] and HT6 [C] ( x 1,  x 2)

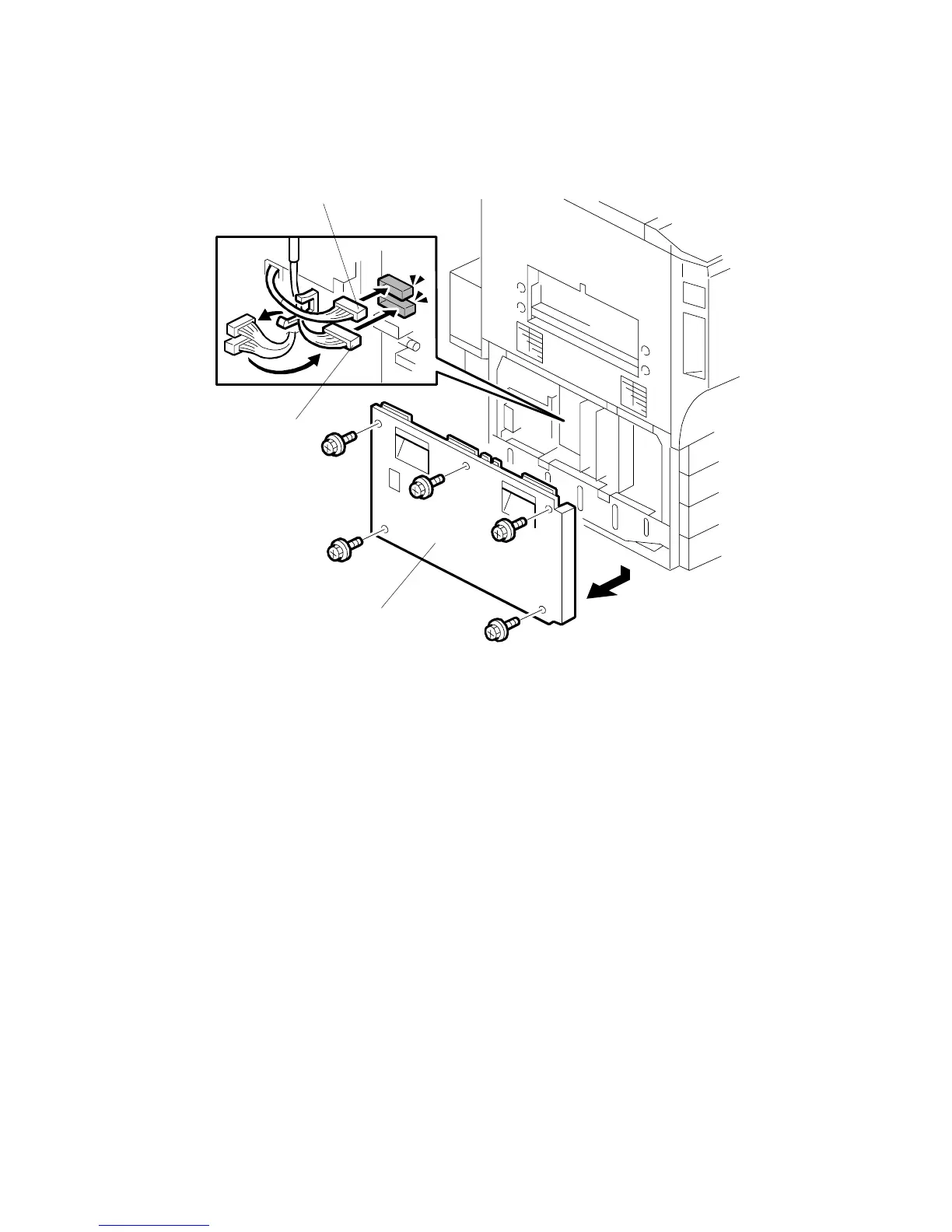

B132I009.WMF
[A]
[B]
[C]
