PUNCH UNIT B702 (FOR B700/B701) August 2006
B700-68

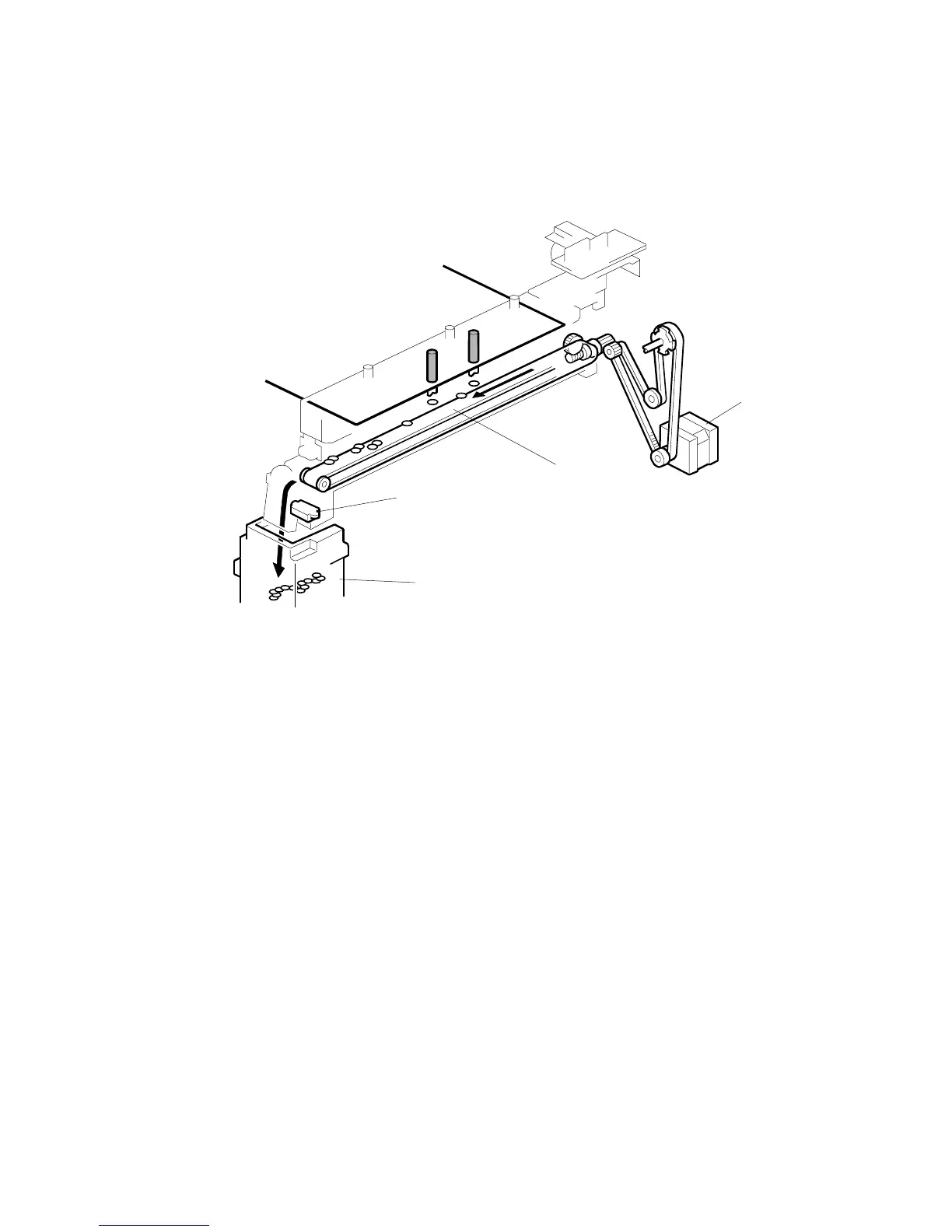

2.11.3 PUNCH HOPPER MECHANISM
[A]: Finisher Entrance Motor (M1)
[B]: Punch Waste Belt
[C]: Punch Waste Hopper
[D]: Punch Hopper Full Sensor (S4)
The finisher entrance motor (M1) [A] drives the timing belt and gears that rotate the
punch waste belt [B].
The punchouts fall from the punch unit onto the belt. The belt moves the punchouts
to the front and dumps them in the punch waste hopper [C].
The punch hopper full sensor [D]:
• Signals that the hopper is full when it detects the top of the stack of punchouts
that have collected in the hopper.
• It also detects when the punch hopper is set properly.
B700D357.WMF
[A]
[B]
[C]
[D]
