SECTIONAL DESCRIPTION September 2006
B331-4
3. DETAILED DESCRIPTIONS
3.1 SECTIONAL DESCRIPTION

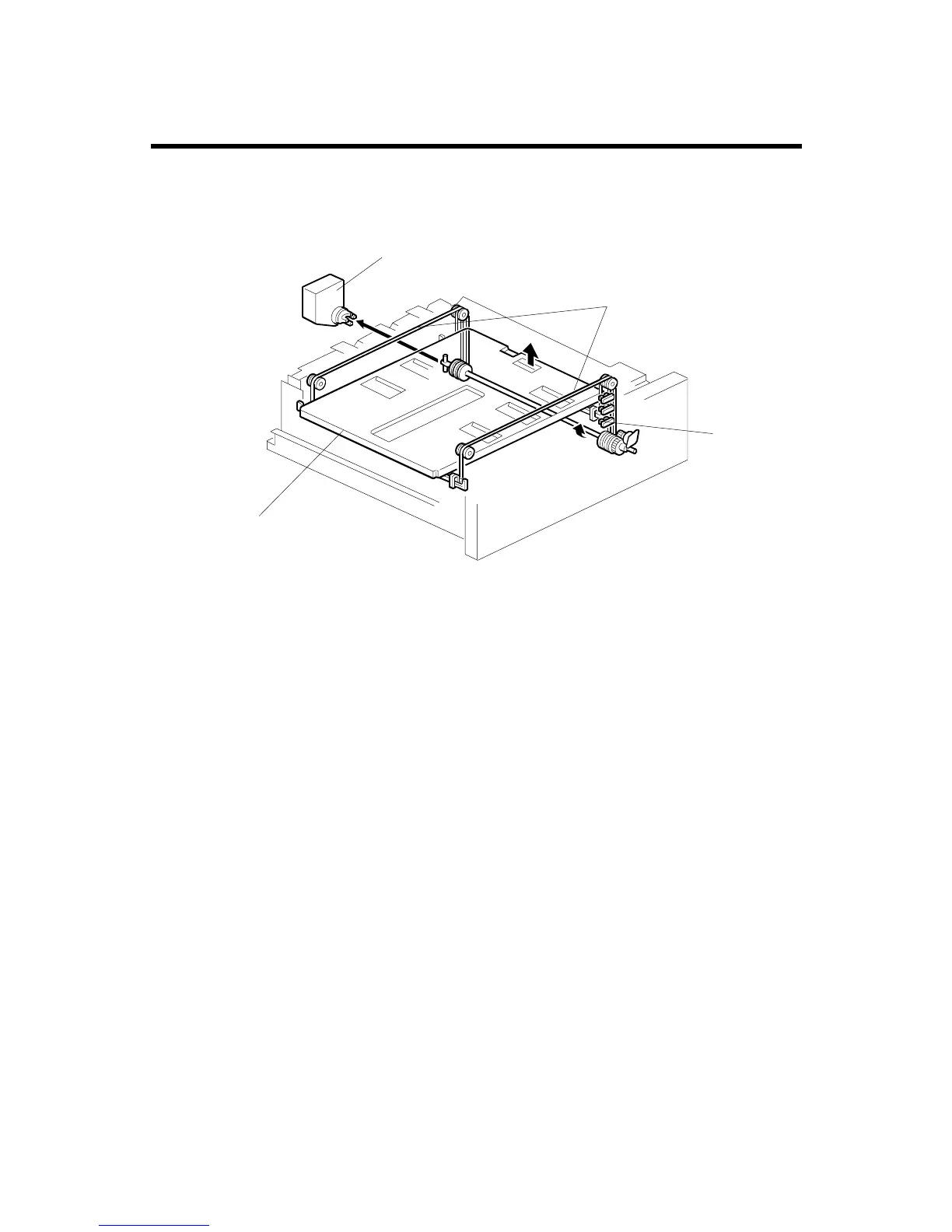

This tray mechanism is basically same as the tandem LCT. This tray bottom plate
[A] is lifted through the tray wires [B] by the lift motor [C] rotation. There is no
remaining paper capacity detection.
The paper remaining sensors [D] trigger messages on the LCD to let the user know
how much paper remains in the tray.
The operation panel LCD displays “full” whether there is paper in the tray. Except
for the above matter, refer to the main copier tandem LCT section for details.
