UPPER TRAY August 2006
B700-40

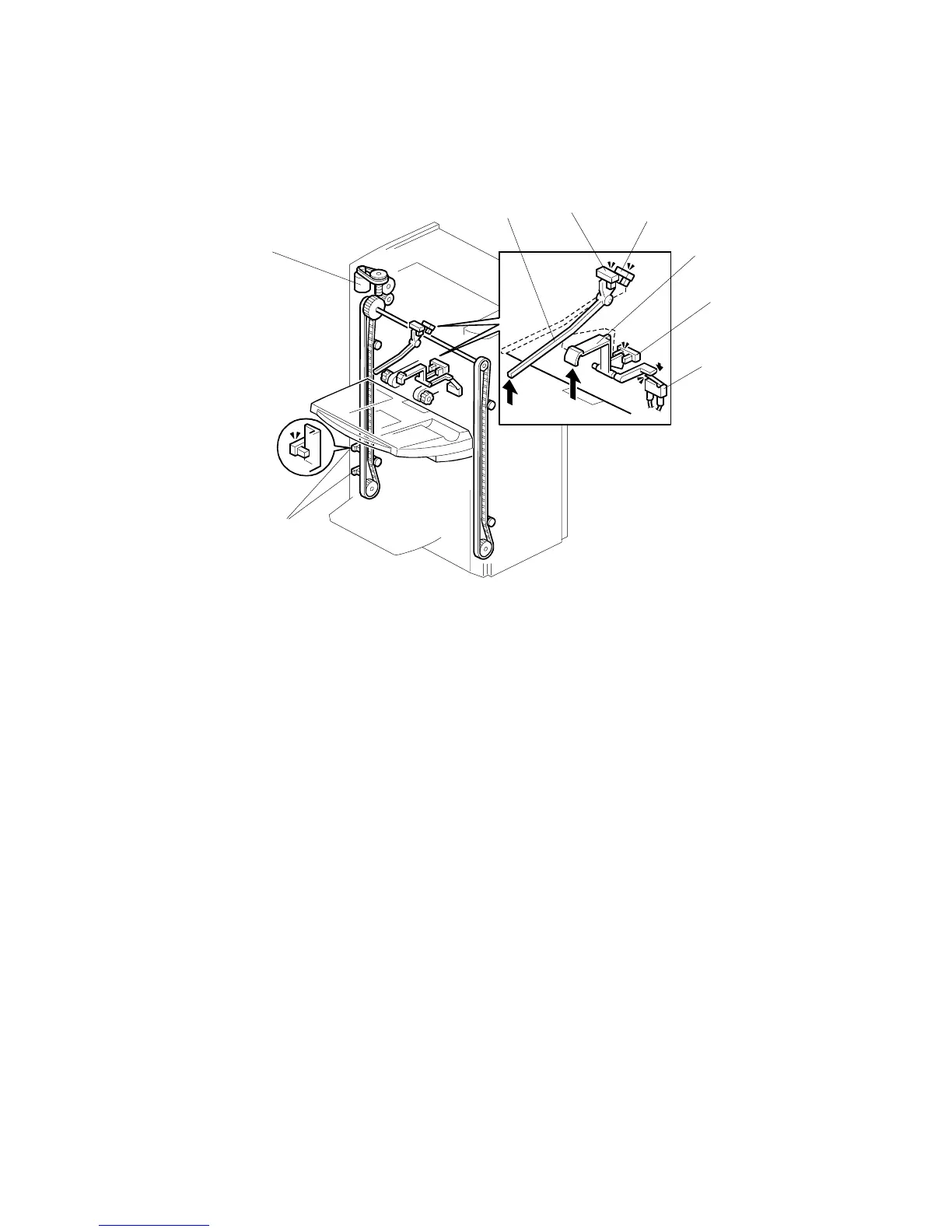

2.6 UPPER TRAY
[A]: Upper Tray Lift Motor
[B]: Upper Feeler
[C]: Upper Tray Paper Height Sensor 1 (Staple Mode)
[D]: Upper Tray Paper Height Sensor 2 (Non-Staple Mode)
[E]: Lower Feeler
[F]: Upper Tray Limit Sensor
[G]: Upper Tray Limit Switch
[H]: Upper Tray Full Sensors
Important
• The B700 (shown above) has only one upper tray full sensor (the higher sensor
at [H])
• The B701 has two upper tray full sensors (the upper and lower sensor at [H]). On
the B701 the upper sensor detects tray full for heavier paper (A3, DLT, B4, LG,
12 x 18”), and the lower sensor detects tray full for lighter paper (A4, LT, etc.).
• The tray full capacity is 2,000 sheets (B700) for A4, LT and 3,000 sheets (B701)
for A4, LT.
