August, 2006 TONER SUPPLY UNIT
3-61
3.6.3 TONER PUMP
Remove:
• Open the front door.
• Toner hopper (3.2.7)
• Support bracket (3.6.2)
• Connector Board (3.6.2)

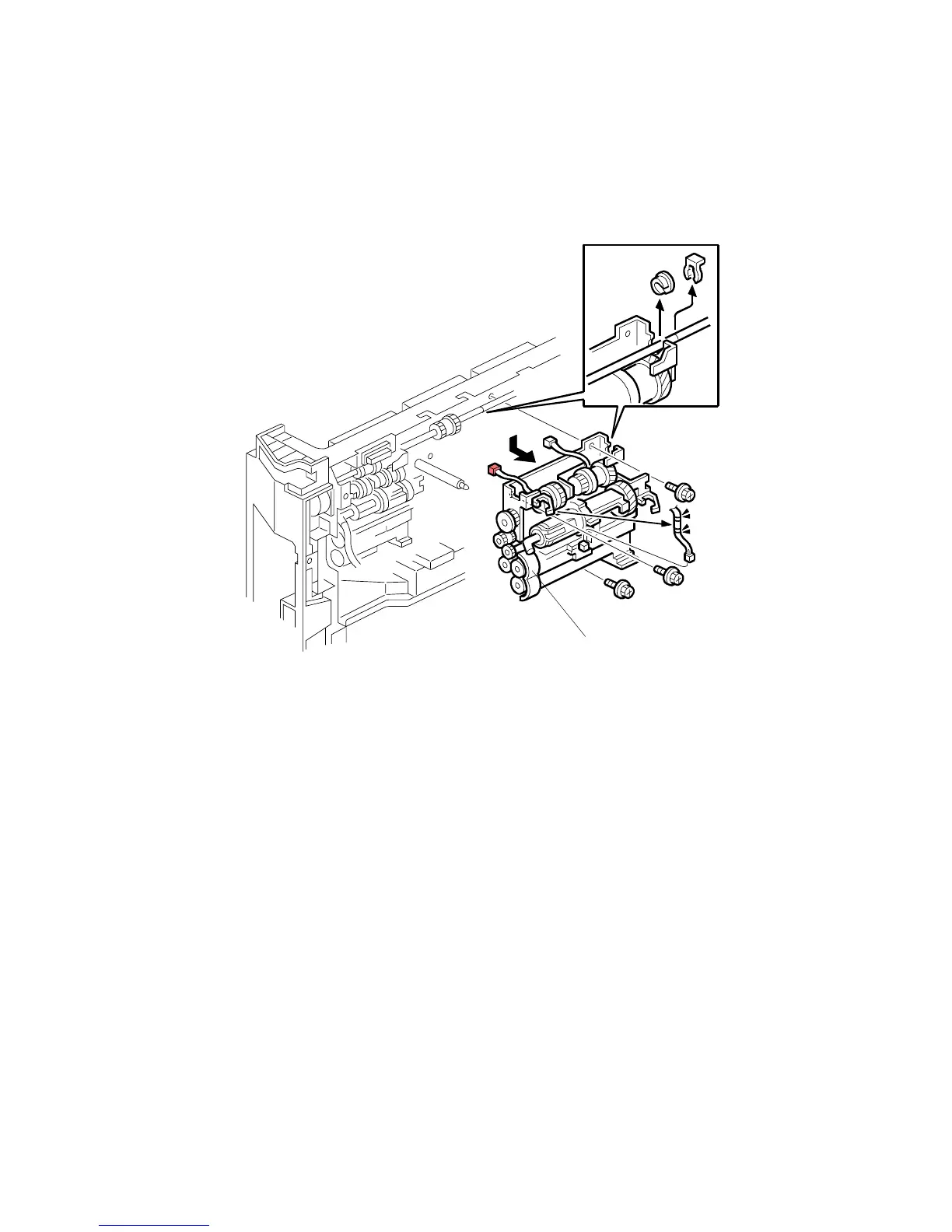

[A]: Toner pump assembly ( x3, x3, Bushing x1, x1).
Pull the assembly straight down and remove it.
B132R217.WMF
[A]
